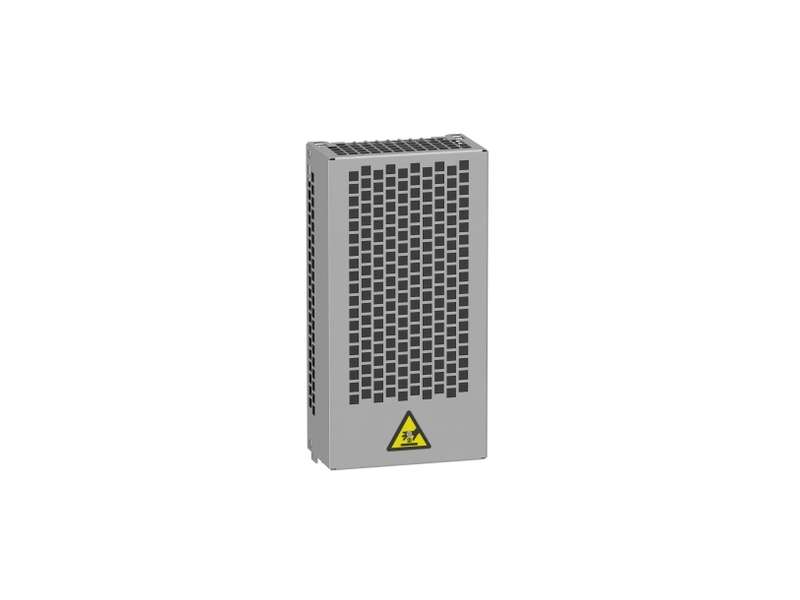

Schneider Electric Braking resistor - 28 ohms - 0.3 kW - IP20;VW3A7732

braking resistor - 28 ohms - 0.3 kW - IP20...

Brand: Schneider Electric
Product Code: VW3A7732
Availability: Check availability

VAT-exclusive price: 18.090,00

VAT-inclusive price: 21.708,00

Qnt:

Description
Specification

braking resistor - 28 ohms - 0.3 kW - IP20

Main
range compatibility	Altivar Machine ATV340 Easy Altivar 310 Altivar Process ATV900 Altivar Machine ATV320 Easy Altivar 310L
product or component type	Braking resistor
ohmic value	28 Ohm

Complementary
product compatibility	Variable speed drive ATV320 15 kW 525...600 V Variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle Variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle Variable speed drive ATV320 7.5 kW 525...600 V Variable speed drive ATV930 15 kW 500...690 V light cycle Variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle Variable speed drive ATV930 25 hp 600 V light cycle Variable speed drive ATV320 7.5 kW 380...480 V Variable speed drive ATV320 3 kW 200...240 V Variable speed drive ATV320 11 kW 380...480 V Variable speed drive ATV320 11 kW 525...600 V Variable speed drive ATV930 20 hp 600 V light cycle Variable speed drive ATV930 18.5 kW 500...690 V light cycle Variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle Variable speed drive ATV340 11 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle Variable speed drive ATV310 11 kW Variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle Variable speed drive ATV340 7.5 kW 380...480 V light cycle Variable speed drive ATV320 2.2 kW 200...240 V
braking cycle	Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
average power available	0.3 kW at 50 °C
electrical connection	Terminal, connection capacity: <= 10 mm² / AWG 8 for drive
protection type	Thermal protection via drive
width	175 mm
height	345 mm
depth	100 mm
net weight	2.7 kg

Environment
IP degree of protection	IP20
ambient air temperature for storage	-25…70 °C
ambient air temperature for operation	0…50 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	3.038 kg
Package 1 Height	16.8 cm
Package 1 width	36.0 cm
Package 1 Length	18.8 cm
Unit Type of Package 2	P06
Number of Units in Package 2	18
Package 2 Weight	63.364 kg
Package 2 Height	50.0 cm
Package 2 width	60.0 cm
Package 2 Length	80.0 cm

Main
range compatibility	Altivar Machine ATV340 Easy Altivar 310 Altivar Process ATV900 Altivar Machine ATV320 Easy Altivar 310L
product or component type	Braking resistor
ohmic value	28 Ohm

Complementary
product compatibility	Variable speed drive ATV320 15 kW 525...600 V Variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle Variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle Variable speed drive ATV320 7.5 kW 525...600 V Variable speed drive ATV930 15 kW 500...690 V light cycle Variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle Variable speed drive ATV930 25 hp 600 V light cycle Variable speed drive ATV320 7.5 kW 380...480 V Variable speed drive ATV320 3 kW 200...240 V Variable speed drive ATV320 11 kW 380...480 V Variable speed drive ATV320 11 kW 525...600 V Variable speed drive ATV930 20 hp 600 V light cycle Variable speed drive ATV930 18.5 kW 500...690 V light cycle Variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle Variable speed drive ATV340 11 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle Variable speed drive ATV310 11 kW Variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle Variable speed drive ATV340 7.5 kW 380...480 V light cycle Variable speed drive ATV320 2.2 kW 200...240 V
braking cycle	Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
average power available	0.3 kW at 50 °C
electrical connection	Terminal, connection capacity: <= 10 mm² / AWG 8 for drive
protection type	Thermal protection via drive
width	175 mm
height	345 mm
depth	100 mm
net weight	2.7 kg

Environment
IP degree of protection	IP20
ambient air temperature for storage	-25…70 °C
ambient air temperature for operation	0…50 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	3.038 kg
Package 1 Height	16.8 cm
Package 1 width	36.0 cm
Package 1 Length	18.8 cm
Unit Type of Package 2	P06
Number of Units in Package 2	18
Package 2 Weight	63.364 kg
Package 2 Height	50.0 cm
Package 2 width	60.0 cm
Package 2 Length	80.0 cm
