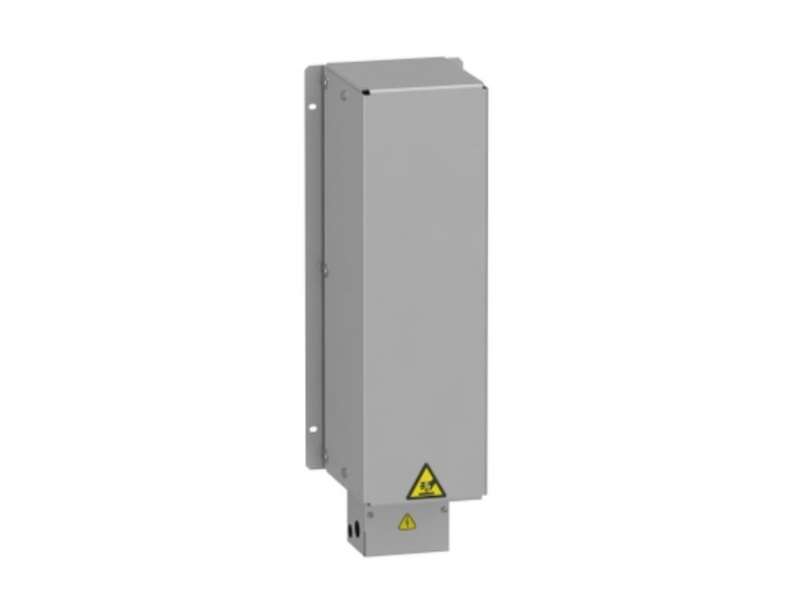

Name: Schneider Electric Braking resistor - 16 ohms - 1.1 kW - IP20 ; VW3A7733
Brand: Schneider Electric
SKU: VW3A7733
Price: 40033.20 RSD
Availability: OutOfStock

Schneider Electric Braking resistor - 16 ohms - 1.1 kW - IP20 ; VW3A7733

braking resistor - 16 ohms - 1.1 kW - IP20 ; VW3A7733...

Brand: Schneider Electric
Product Code: VW3A7733
Availability: Check availability

VAT-exclusive price: 33.361,00

VAT-inclusive price: 40.033,20

Qnt:

Description
Specification

braking resistor - 16 ohms - 1.1 kW - IP20 ; VW3A7733

Main
range compatibility	Altivar Machine ATV320 Altivar Process ATV900 Altivar Machine ATV340
product or component type	Braking resistor
ohmic value	16 Ohm
[Ue] rated operational voltage	24 V DC 250 V AC

Complementary
product compatibility	Variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle Variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle Variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle Variable speed drive ATV340 15 kW 380...480 V light cycle Variable speed drive ATV340 18 kW 380...480 V light cycle Variable speed drive ATV340 22 kW 380...480 V light cycle Variable speed drive ATV320 4 kW 200...240 V Variable speed drive ATV320 5.5 kW 200...240 V Variable speed drive ATV320 15 kW 380...480 V Variable speed drive ATV930 22 kW 500...690 V light cycle Variable speed drive ATV930 30 kW 500...690 V light cycle Variable speed drive ATV930 37 kW 500...690 V light cycle Variable speed drive ATV930 30 hp 600 V light cycle Variable speed drive ATV930 40 hp 600 V light cycle Variable speed drive ATV930 50 hp 600 V light cycle
braking cycle	Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
