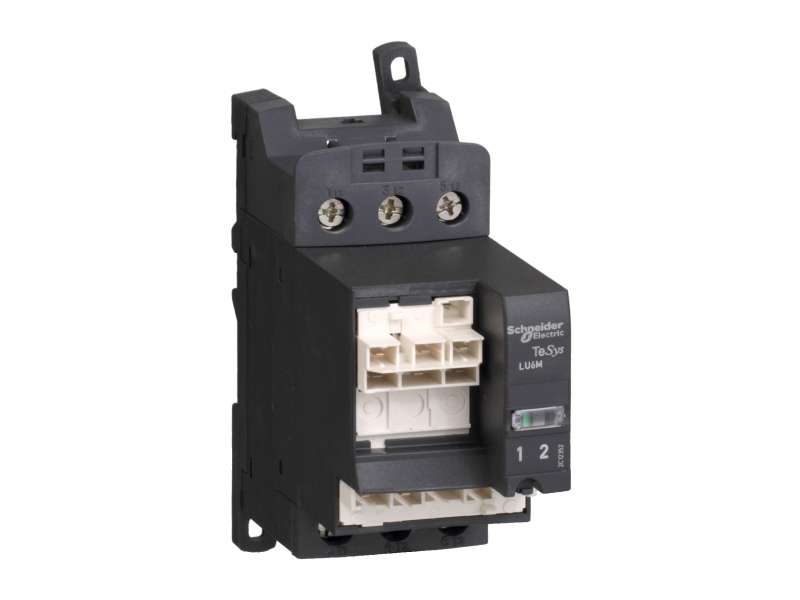

Schneider Electric Blok za promenu smera LU6 - 32 A - 110...240 V DC/AC 50...60 Hz-odvojena montaža
Reverser block for side mounting, TeSys U, 38A/690V, coil 110-240V AC/DC...
VAT-exclusive price: 16.297,00 |
VAT-inclusive price: 19.556,40 |
Reverser block for side mounting, TeSys U, 38A/690V, coil 110-240V AC/DC
| range | TeSys |
|---|---|
| device short name | LU6MB |
| Product or component type | Reverser block |
| device mounting | Separate mounting |
| Device application | Motor control |
| [Ie] rated operational current | 38 A |
| [Uc] control circuit voltage |
110...240 V AC 50/60 Hz 110...220 V DC |
| current consumption |
1000 mA at 110...220 V DC I maximum while closing 1000 mA at 110...240 V AC I maximum while closing |
| [Ue] rated operational voltage | 690 V AC power circuit |
|---|---|
| network frequency | 40...60 Hz |
| inrush restraint duration |
25 ms AC 15 ms DC |
| operating time |
150 ms with change of direction 75 ms without change of direction |
| standards |
EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier |
| Product certifications |
CE UL CSA CCC EAC ASEFA ATEX Marine |
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-6-2 600 V conforming to UL 60947-4-1 600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| fixing mode |
Clipped (DIN rail) Screw-fixed (plate) |
| connections - terminals |
Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid Control circuit: screw clamp terminals 2 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² (external diameter: 4 mm) rigid Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm² (external diameter: 4 mm) flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) rigid Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm² (external diameter: 4 mm) flexible without cable end |
| tightening torque |
Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm Control circuit: 0.8…1.2 N.m Philips No 2 screwdriver 5 mm Power circuit: 1.9…2.5 N.m flat screwdriver 6 mm Power circuit: 1.9…2.5 N.m Philips No 2 screwdriver 6 mm |
| Width | 45 mm |
| Height | 115 mm |
| Depth | 113 mm |
| Net weight | 0.425 kg |
| compatibility code | LU6MB |
| IP degree of protection |
IP20 conforming to IEC 60947-1 (front panel and wired terminals) IP20 conforming to IEC 60947-1 (other faces) IP40 conforming to IEC 60947-1 (front panel outside connection zone) |
|---|---|
| protective treatment | TH conforming to IEC 60068 |
| ambient air temperature for operation |
-25…60 °C with LUCM -25…70 °C with LUCA, LUCB, LUCC, LUCD |
| ambient air temperature for storage | -40…85 °C |
| fire resistance |
960 °C parts supporting live components conforming to IEC 60695-2-12 650 °C conforming to IEC 60695-2-12 |
| operating altitude | 2000 m |
| shock resistance |
10 gn power poles open conforming to IEC 60068-2-27 15 gn power poles closed conforming to IEC 60068-2-27 |
| vibration resistance |
2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27 4 gn (f= 5…300 Hz) power poles closed conforming to IEC 60068-2-27 |
| resistance to electrostatic discharge |
8 kV level 3, in open air conforming to IEC 61000-4-2 8 kV level 4, on contact conforming to IEC 61000-4-2 |
| resistance to radiated fields | 10 V/m level 3 conforming to IEC 61000-4-3 |
| resistance to fast transients |
2 kV class 3 serial link conforming to IEC 61000-4-4 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| non-dissipating shock wave |
1 kV serial mode conforming to IEC 60947-6-2 2 kV common mode conforming to IEC 60947-6-2 |
| immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 447 g |
| Package 1 Height | 5.7 cm |
| Package 1 width | 13.2 cm |
| Package 1 Length | 14.5 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 4.925 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| REACh Regulation | REACh Declaration |
|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
TeSys U LU6MB0FU
