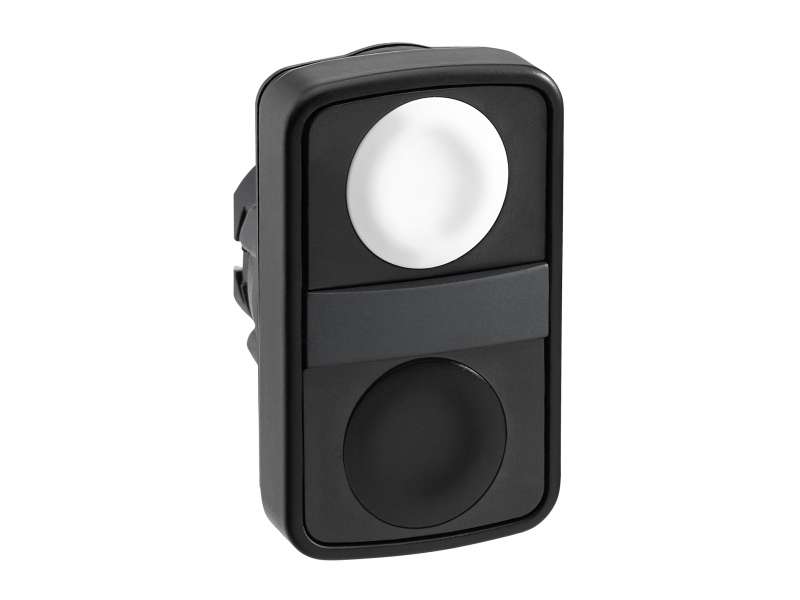

Schneider Electric Beli udubljeni/crni udubljeni dvostruki taster Ø22 neobeleženo;ZB5AA7120
White flush/black flush double-headed pushbutton Ø22 unmarked...
VAT-exclusive price: 987,00 |
VAT-inclusive price: 1.184,40 |
White flush/black flush double-headed pushbutton Ø22 unmarked
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for double-headed push-button
|
|
| device short name |
ZB5
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Rectangular
|
|
| type of operator |
spring return
|
|
| operator profile |
2 flush push-buttons
|
|
| operators description |
White unmarked - black unmarked
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
50 mm
|
|
| CAD overall depth |
30 mm
|
|
| net weight |
0.023 kg
|
|
| colour of marking |
White marking when green, red or black caps
Black marking when white caps |
|
| operator profile |
Black flush, unmarked
White flush, unmarked |
|
| mechanical durability |
1000000 cycles
|
|
| station name |
XALD 1 cut-out
|
|
| electrical composition code |
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting SF2 for <2 contacts using single blocks in front mounting SR2 for <2 contacts using single blocks in rear mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP69K conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 UL 508 JIS C8201-1 |
|
| product certifications |
BV
CSA LROS (Lloyds register of shipping) GL DNV UL listed RINA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
26 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
5.3 cm
|
|
| Package 1 Length |
5.7 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
200
|
|
| Package 2 Weight |
5.766 kg
|
|
| Package 2 Height |
30 cm
|
-
Harmony XB5 ZB5AA7120
