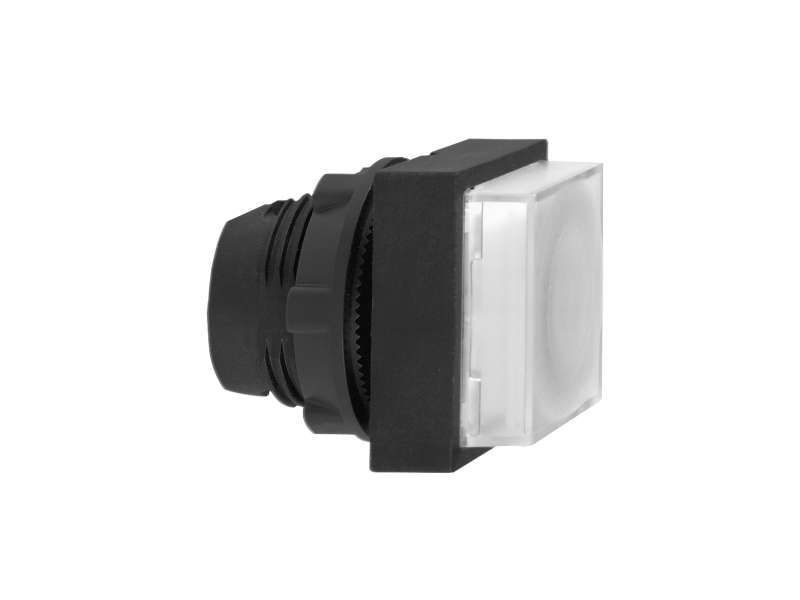

Schneider Electric Bela kvadratna izbočena glava svetlećeg tastera Ø22 sa povratkom za integr. LED;ZB5CW113
White square projecting illum pushbutton head Ø22 spring return for integral LED...
VAT-exclusive price: 1.668,00 |
VAT-inclusive price: 2.001,60 |
White square projecting illum pushbutton head Ø22 spring return for integral LED
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for illuminated push-button
|
|
| device short name |
ZB5
|
|
| product compatibility |
Integral LED
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Square
|
|
| type of operator |
spring return
|
|
| operator profile |
White projecting, unmarked
|
|
| operator additional information |
For insertion of legend
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
30 mm
|
|
| CAD overall depth |
34 mm
|
|
| net weight |
0.024 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
10000000 cycles
|
|
| main group |
Illum push-button
|
|
| group of product |
Proj push integral LED
|
|
| station name |
XALD 1...5 cut-outs
XALK 2...5 cut-outs |
|
| cap/operator or lens colour |
White
|
|
| marking |
Unmarked
|
|
| electrical composition code |
M1 for <6 contacts using single blocks in front mounting with integral LED
M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED MR1 for <2 contacts using single blocks in rear mounting with integral LED |
|
| device presentation |
Basic element
|
| protective treatment |
TC
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to EN 50102
|
|
| standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-4 GB 14048.5 UL 508 EN/IEC 60947-1 JIS C8201-1 |
|
| product certifications |
LROS (Lloyds register of shipping)
GL UL listed DNV BV CSA RINA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Package 1 Weight |
0.021 kg
|
|
|---|---|---|
| Package 1 Height |
0.530 dm
|
|
| Package 1 width |
0.340 dm
|
|
| Package 1 Length |
0.440 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
-
Harmony XB5 ZB5CW113
