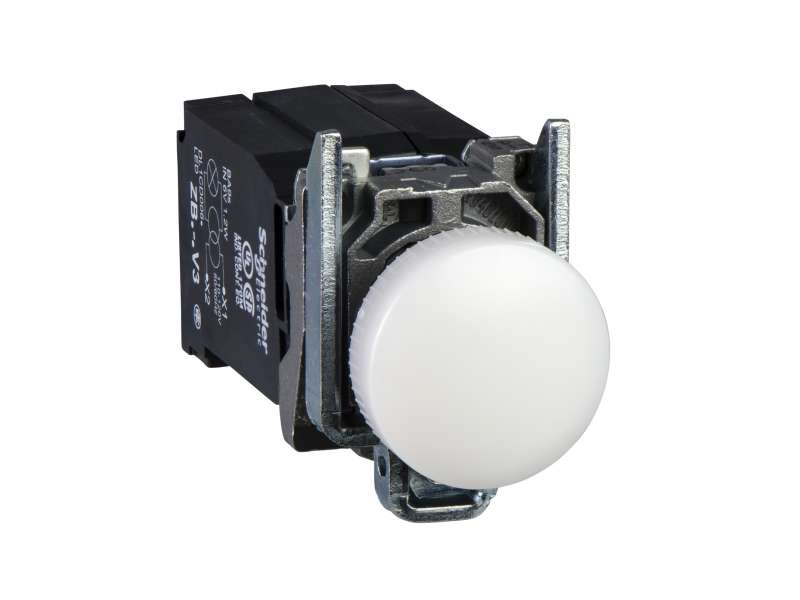

Schneider Electric Bela kompletna lampica Ø22 glatka sočiva integrisani LED 400V;XB4BV5B1
Pilot light, metal, white, Ø22, plain lens with integral LED, 400 V AC...
VAT-exclusive price: 4.008,00 |
VAT-inclusive price: 4.809,60 |
Pilot light, metal, white, Ø22, plain lens with integral LED, 400 V AC
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Pilot light
|
|
| device short name |
XB4
|
|
| bezel material |
Chromium plated metal
|
|
| fixing collar material |
Zamak
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
White
|
|
| operator additional information |
With plain lens
|
|
| light source |
Protected LED
|
|
| bulb base |
Integral LED
|
|
| light block supply |
Via transformer 1.2 VA 24 V
|
|
| light source colour |
White
|
|
| [Us] rated supply voltage |
400 V AC at 50 Hz
|
| CAD overall width |
40 mm
|
|
|---|---|---|
| CAD overall height |
47 mm
|
|
| CAD overall depth |
90 mm
|
|
| net weight |
0.172 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| signalling type |
Steady
|
|
| service life |
100000 h at rated voltage and 25 °C
|
|
| surge withstand |
1 kV conforming to IEC 61000-4-5
|
|
| device presentation |
Complete product
|
|
| supply voltage limits |
407…423 V AC
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-5
UL 508 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-5-1 JIS C8201-1 |
|
| product certifications |
UL listed
CSA |
|
| vibration resistance |
2 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
|
| electromagnetic emission |
Class B conforming to IEC 55011
|
-
Harmony XB4 XB4BV5B1 (3)
