Schneider Electric Bela glava signalne lampice Ø22 ravna sočiva za integrisan LED;ZB4BV013
Pilot light head, metal, white, Ø22, plain lens for integral LED...
VAT-exclusive price: 522,00 |
VAT-inclusive price: 626,40 |

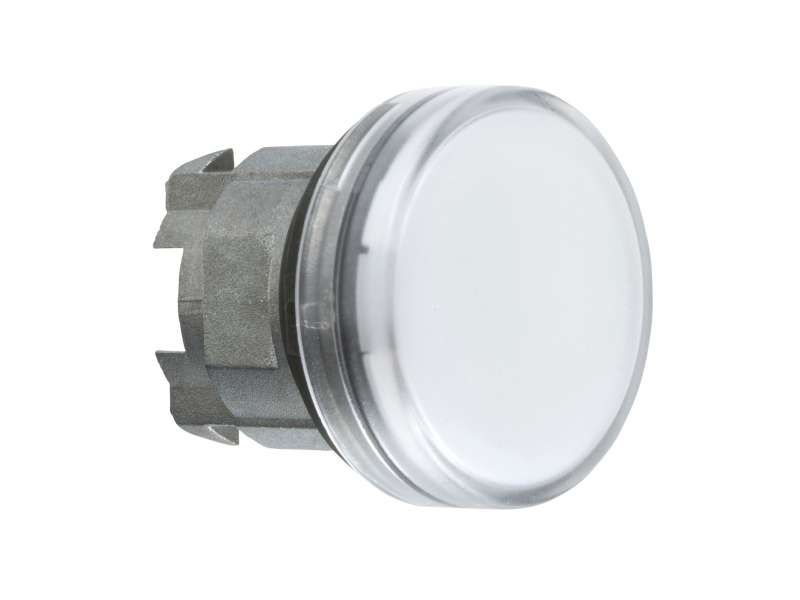

Pilot light head, metal, white, Ø22, plain lens for integral LED
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for pilot light
|
|
| product compatibility |
Integral LED
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
White
|
|
| operator additional information |
With plain lens
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
29 mm
|
|
| CAD overall depth |
30 mm
|
|
| net weight |
0.026 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| electrical composition code |
P1 in front mounting with integral LED
P2 in front mounting with integral LED and transformer |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-4
EN/IEC 60947-5-5 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-5-1 JIS C8201-1 |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
27 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
4.4 cm
|
|
| Package 1 Length |
5.4 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
138 g
|
|
| Package 2 Height |
3.4 cm
|
|
| Package 2 width |
4.4 cm
|
|
| Package 2 Length |
26.5 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
300
|
|
| Package 3 Weight |
8.755 kg
|
|
| Package 3 Height |
-
Harmony XB4 ZB4BV013
