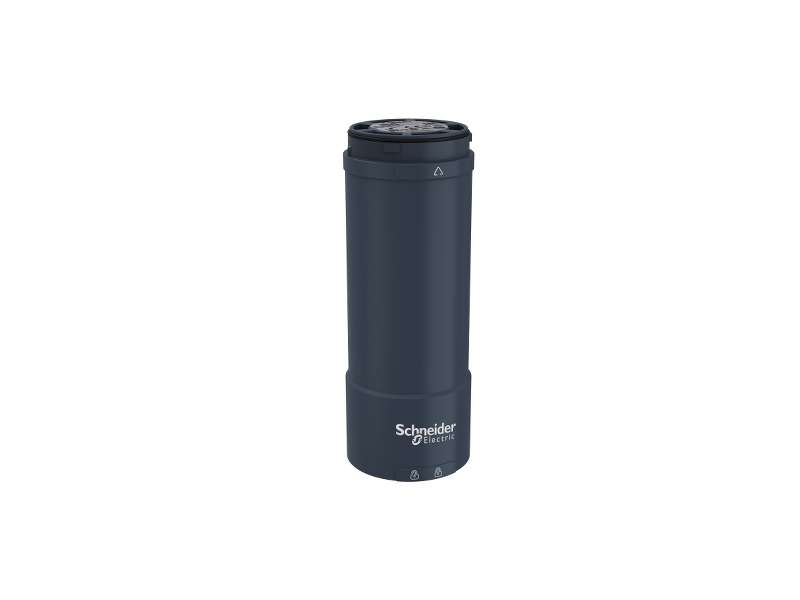

Schneider Electric Bazna jedinica AC - crna - PNP;XVUC21MP

Harmony XVU, Base unit with top cover for modular tower lights, black, Ø60, PNP, 100...240 V AC...

Brand: Schneider Electric
Product Code: XVUC21MP
Availability: Check availability

VAT-exclusive price: 8.560,00

VAT-inclusive price: 10.272,00

Qnt:

Description
Specification

Harmony XVU, Base unit with top cover for modular tower lights, black, Ø60, PNP, 100...240 V AC

Main
range of product	Harmony XVU
product or component type	Modular tower light
beacon or indicator bank unit type	Base unit
mounting diameter	60 mm
component name	XVU
housing colour	Black

Complementary
kit composition	Base unit (PNP) Cover
fixing mode	Direct or tube fixing
material	PBT (polybutylene terephthalate) V-0 conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94 PC (polycarbonate) V-0 conforming to UL 94
assembly style	Customer assembly, up to 5 units
[Us] rated supply voltage	100...240 V AC +/- 10 %
current consumption	<= 400 mA
length	151 mm
net weight	0.235 kg

Environment
product certifications	CE CSA UL CCC
ambient air temperature for storage	-20…65 °C
ambient air temperature for operation	0…50 °C
vibration resistance	2 gn
IP degree of protection	IP65
electrical shock protection class	Class II on base unit conforming to IEC 61140

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	420.0 g
Package 1 Height	9.1 cm
Package 1 width	9.5 cm
Package 1 Length	27.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	1
Package 2 Weight	713.0 g
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	S04
Number of Units in Package 3	24
Package 3 Weight	11.428 kg
Package 3 Height	30.0 cm
Package 3 width	40.0 cm
Package 3 Length	60.0 cm

Main
range of product	Harmony XVU
product or component type	Modular tower light
beacon or indicator bank unit type	Base unit
mounting diameter	60 mm
component name	XVU
housing colour	Black

Complementary
kit composition	Base unit (PNP) Cover
fixing mode	Direct or tube fixing
material	PBT (polybutylene terephthalate) V-0 conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94 PC (polycarbonate) V-0 conforming to UL 94
assembly style	Customer assembly, up to 5 units
[Us] rated supply voltage	100...240 V AC +/- 10 %
current consumption	<= 400 mA
length	151 mm
net weight	0.235 kg

Environment
product certifications	CE CSA UL CCC
ambient air temperature for storage	-20…65 °C
ambient air temperature for operation	0…50 °C
vibration resistance	2 gn
IP degree of protection	IP65
electrical shock protection class	Class II on base unit conforming to IEC 61140

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	420.0 g
Package 1 Height	9.1 cm
Package 1 width	9.5 cm
Package 1 Length	27.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	1
Package 2 Weight	713.0 g
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	S04
Number of Units in Package 3	24
Package 3 Weight	11.428 kg
Package 3 Height	30.0 cm
Package 3 width	40.0 cm
Package 3 Length	60.0 cm
