Schneider Electric Baza sa poklopcem XVM - Ø 45 mm - bela - vijčani priključak - IP40;XVMC21
Harmony XVM, Base mounting unit with cover, plastic, white, Ø45, without buzzer...
VAT-exclusive price: 2.601,00 |
VAT-inclusive price: 3.121,20 |

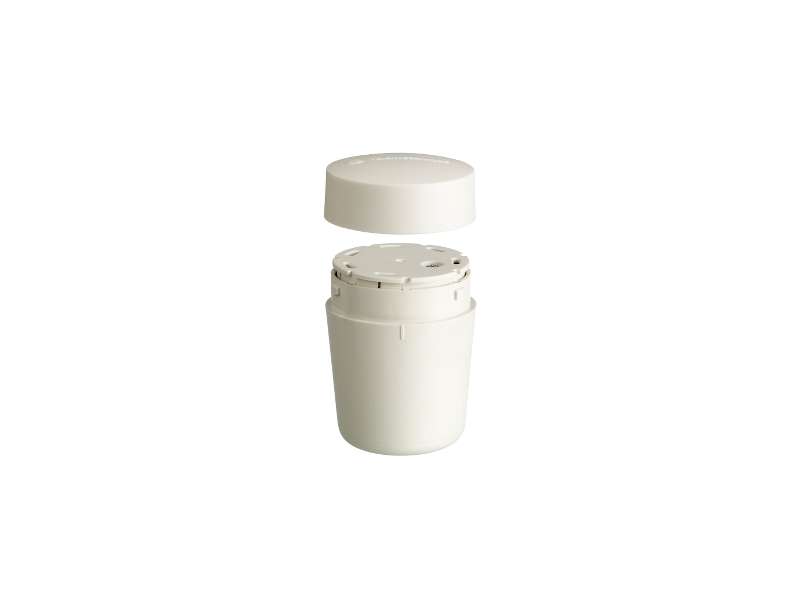

Harmony XVM, Base mounting unit with cover, plastic, white, Ø45, without buzzer
| range of product | Harmony XVM |
|---|---|
| product or component type | Base unit with cover |
| kit composition |
Cover Base unit |
| component name | XVM |
| indicator bank base type | Base without buzzer |
| mounting diameter | 45 mm |
|---|---|
| housing colour | White |
| connections - terminals | Screw terminals, 1 x 0.325...1 x 1.5 mm² |
| marking | CE |
| net weight | 0.055 kg |
| standards |
EN/IEC 60947-5-1 EN/IEC 60947-1 |
|---|---|
| product certifications | CCC |
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | -10…50 °C |
| electrical shock protection class |
Class I aluminium tube mounting conforming to IEC 60947-1 Class I aluminium tube mounting conforming to IEC 60947-5-1 Class I aluminium tube mounting conforming to IEC 61140 |
| IP degree of protection |
IP40 any position except vertical position conforming to IEC 60529 IP42 vertical position conforming to IEC 60529 |
| protective treatment | TC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 60.0 g |
| Package 1 Height | 6.0 cm |
| Package 1 width | 4.8 cm |
| Package 1 Length | 4.8 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 21 |
| Package 2 Weight | 1.623 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
