Battery control module - 24..28.8 V DC - 24 V - 20 A - for regulated SMPS...
VAT-exclusive price: 43.805,00 |
VAT-inclusive price: 52.566,00 |

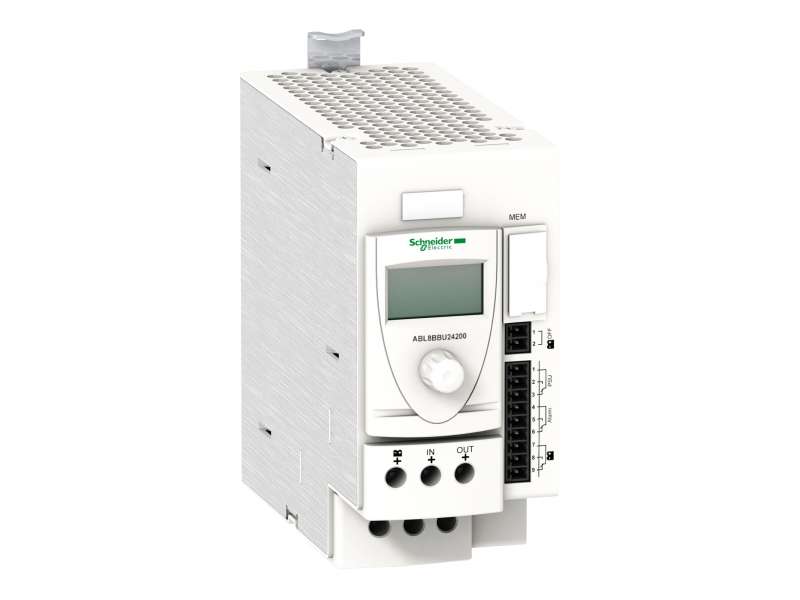

Battery control module - 24..28.8 V DC - 24 V - 20 A - for regulated SMPS
| range of product |
Phaseo
|
|
|---|---|---|
| product or component type |
Battery control module
|
|
| input voltage |
24...28.8 V DC
|
|
| output voltage |
(Ubattery-0.5) V in battery mode DC
(Uin-0.25) V in nominal mode DC |
|
| maximum output current |
20 A
|
| input voltage limits |
22...30 V
|
|
|---|---|---|
| maximum power dissipation in W |
7 W
|
|
| activation threshold |
Adjustable 22...36 V
|
|
| number of output channels |
1
|
|
| current consumption |
0.6 A on load
0.1 mA no load <= 40.6 A |
|
| output protection type |
Against overload, protection technology: 1.5 x In
Against short-circuits, protection technology: battery-backed mode, automatic reset Against short-circuits, protection technology: power-supplied mode |
|
| connections - terminals |
For diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²
For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 |
|
| fixing mode |
By clips on 35 mm symmetrical DIN rail, operating position: horizontal
By clips on 35 mm symmetrical DIN rail, operating position: vertical |
|
| operating altitude |
2000 m
|
|
| marking |
CE
|
|
| name of test |
Electrostatic discharges conforming to EN/IEC 61000-4-2
Emission conforming to EN 61000-6-3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to EN/IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 class B, 20 % |
|
| local signalling |
1 C/O relay for alarm status
1 C/O relay for battery status 1 C/O relay for power supply status LCD screen for module status |
|
| width |
60 mm
|
|
| height |
125 mm
|
|
| depth |
160 mm
|
|
| net weight |
0.5 kg
|
| product certifications |
RCM
EAC |
|
|---|---|---|
| standards |
UL 508
CSA C22.2 No 60950-1 |
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| environmental characteristic |
EMC conforming to EN 61000-6-3
EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to EN/IEC 61204-3 |
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
500 V between input and ground
500 V between output and ground |
|
| overvoltage category |
Class II conforming to VDE 0106-1
|
|
| relative humidity |
0…90 % during operation
0…95 % during storage |
|
| MTBF reliability |
718708 H at 24 V DC with UTE C80-810 calculation method
|
|
| vibration resistance |
2 gn (f= 11.9…150 Hz) conforming to EN/IEC 61131-2
3.5 mm (f= 3…11.9 Hz) conforming to EN/IEC 61131-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.468 kg
|
|
| Package 1 Height |
9 cm
|
|
| Package 1 width |
19.5 cm
|
|
| Package 1 Length |
19.5 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
8
|
|
| Package 2 Weight |
11.929 kg
|
|
| Package 2 Height |
30 cm
|
|
-
