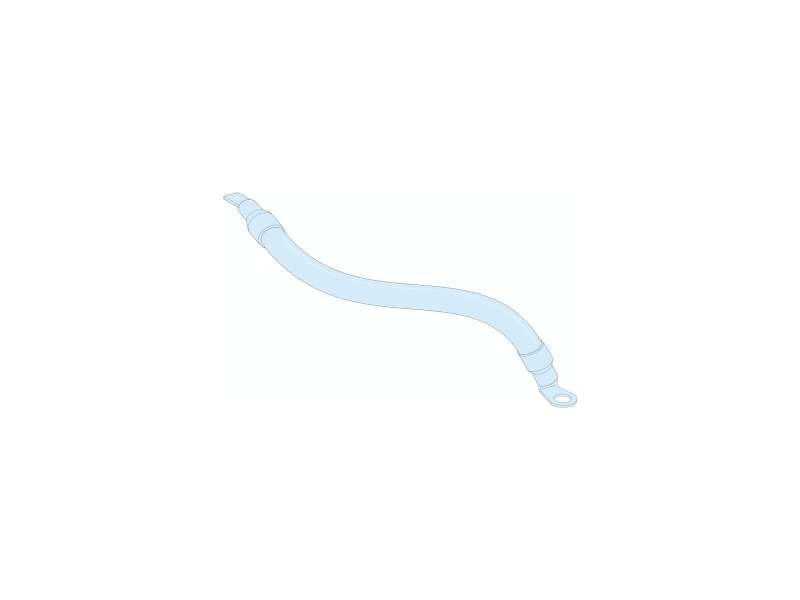

Schneider Electric Bakarni priključci 160A 4P š250 sa 45² kablovskim završetkom + 45° stopicom; LVS04146
Connection, PrismaSeT P, for INS-INV160/NG125/NG160, 160A, 4P, W250, with 45² mm ferrule +connectors...
VAT-exclusive price: 6.546,00 |
VAT-inclusive price: 7.855,20 |
Connection, PrismaSeT P, for INS-INV160/NG125/NG160, 160A, 4P, W250, with 45² mm ferrule +connectors
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Connection |
| Product name | Linergy BW |
| product name |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure Linergy (Linergy BW) busbar |
| Provided equipment | With connection |
| Standards |
IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure |
| Product certifications | ASTA |
| Cubicle-device connection | Linergy BS busbar |
|---|---|
| Poles description | 4P |
| installation description |
Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing enclosure - width 850 mm Pack enclosure - width 550 mm Cubicle - width 600 mm |
| Installed device |
Multi 9: NG125 ComPact: NG160 ComPact: INS160 |
| [Ie] rated operational current | 160 A |
| Material |
Copper Plastic |
| Colour |
Copper Black (RAL 9005) |
| Length | 250 mm |
| Net weight | 0.6 kg |
| Quantity per set | Set of 4 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.3 cm |
| Package 1 Width | 5.3 cm |
| Package 1 Length | 27.5 cm |
| Package 1 Weight | 575.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.148 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 27.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 69.0 kg |
