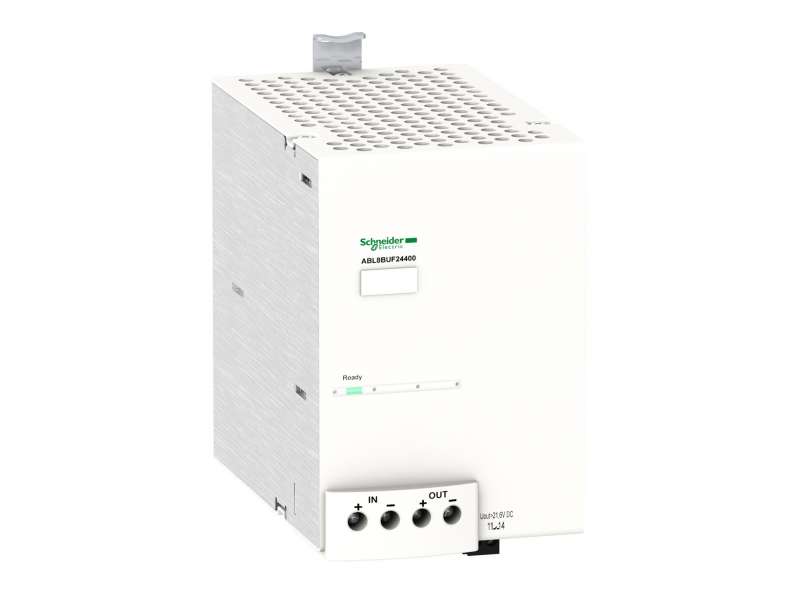

Name: Schneider Electric Baferski modul - 24..28.8 V DC - 40 A - za napajanje;ABL8BUF24400
Brand: Schneider Electric
SKU: ABL8BUF24400
Price: 41132.40 RSD
Availability: OutOfStock

Schneider Electric Baferski modul - 24..28.8 V DC - 40 A - za napajanje;ABL8BUF24400

Buffer module - 24..28.8 V DC - 40 A - for power supply...

Brand: Schneider Electric
Product Code: ABL8BUF24400
Availability: Check availability

VAT-exclusive price: 34.277,00

VAT-inclusive price: 41.132,40

Qnt:

Buffer module - 24..28.8 V DC - 40 A - for power supply

Main
range of product	Phaseo
product or component type	Buffer module
input voltage	24...28.8 V DC
output voltage	(Uin-0.25) V in nominal mode DC (Uin-1) V in buffer mode DC
maximum output current	40 A
holding time	0.1 s at 40 A 6 s at 0.5 A

Complementary
input voltage limits	22...30 V
maximum power dissipation in W	15 W
activation threshold	(Uin-1) V and 22 V min
charging time	25 s
number of output channels	1
current consumption	0.6 A on load 0.1 mA no load <= 40.6 A
output protection type	Against overload, protection technology: > 45 A Against short-circuits, protection technology: power-supplied mode, automatic reset Against undervoltage, protection technology: tripping if U < 19 V
connections - terminals	For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14
fixing mode	By clips on 35 mm symmetrical DIN rail, operating position: horizontal By clips on 35 mm symmetrical DIN rail, operating position: vertical
output coupling	Parallel
operating altitude	2000 m
marking	CE
name of test	Electrostatic discharges conforming to EN/IEC 61000-4-2 Emission conforming to EN 61000-6-3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to EN/IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 class B, 20 %
local signalling	1 LED (green) for buffer ready 1 relay for buffer ready
net weight	1.2 kg

Environment
product certifications	RCM EAC
standards	UL 508 CSA C22.2 No 60950-1
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C
environmental characteristic	EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to EN/IEC 61204-3
IP degree of protection	IP20 conforming to EN/IEC 60529
dielectric strength	500 V between input and ground 500 V between output and ground
overvoltage category	Class II conforming to VDE 0106-1
relative humidity	0…90 % during operation 0…95 % during storage
MTBF reliability	1119603 H at 24 V DC with UTE C80-810 calculation method
vibration resistance	2 gn (f= 11.9…150 Hz) conforming to EN/IEC 61131-2 3.5 mm (f= 3…11.9 Hz) conforming to EN/IEC 61131-2

Packing Units
Package 1 Weight	1.401 kg
Package 1 Height	1.150 dm
Package 1 width	1.700 dm
Package 1 Length	1.820 dm

Offer Sustainability
China RoHS Regulation
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
