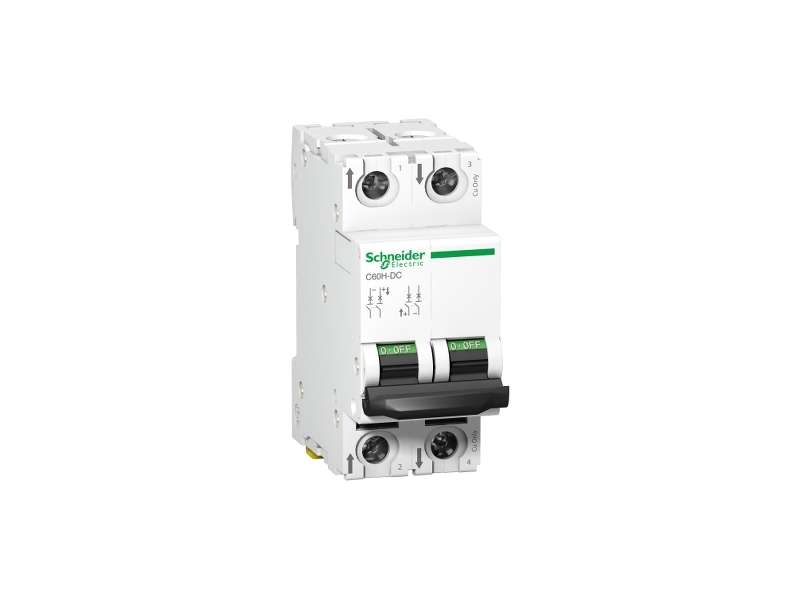

Schneider Electric Automatski prekidač - C60H - 2P - 32 A - C kriva;A9N61535

miniature circuit breaker - C60H - 2 poles - 32 A - C curve...

Brand: Schneider Electric
Product Code: A9N61535
Availability: Check availability

VAT-exclusive price: 3.567,00

VAT-inclusive price: 4.280,40

Qnt:

Description
Specification

miniature circuit breaker - C60H - 2 poles - 32 A - C curve

Main
range	Acti 9
product name	Acti9 C60H-DC
product or component type	Miniature circuit-breaker
device short name	C60H-DC
device application	Distribution
poles description	2P
number of protected poles	2
[In] rated current	32 A at 25 °C
network type	DC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	10 kA Icu at 440 V DC conforming to EN 60947-2 10 kA Icu at 440 V DC conforming to IEC 60947-2 6 kA Icu at 500 V DC conforming to EN 60947-2 6 kA Icu at 500 V DC conforming to IEC 60947-2 20 kA Icu at 220 V DC conforming to GB 14048.2 20 kA Icu at 220 V DC conforming to IEC 60947-2 20 kA Icu at 250 V DC conforming to GB 14048.2 20 kA Icu at 250 V DC conforming to IEC 60947-2
utilisation category	Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2
suitability for isolation	Yes conforming to IEC 60947-2 Yes conforming to EN 60947-2

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	500 V DC
[Ics] rated service breaking capacity	15 kA 75 % conforming to EN 60947-2 - 220 V DC 15 kA 75 % conforming to IEC 60947-2 - 220 V DC 15 kA 75 % conforming to EN 60947-2 - 250 V DC 15 kA 75 % conforming to IEC 60947-2 - 250 V DC 4.5 kA 75 % conforming to EN 60947-2 - 500 V DC 4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC 7.5 kA 75 % conforming to EN 60947-2 - 440 V DC 7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC
[Ui] rated insulation voltage	500 V DC conforming to IEC 60947-2 500 V DC conforming to EN 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	ON/OFF indication
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
comb busbar and distribution block compatibility	Top or bottom: standard
9 mm pitches	4
net weight	0.256 kg
colour	White
mechanical durability	20000 cycles
electrical durability	3000 cycles 500 V DC 6000 cycles 500 V DC
provision for padlocking	Padlockable
locking options description	In position O
tightening torque	Power circuit: 2.5 N.m top or bottom
earth-leakage protection	Without

Environment
standards	EN 60947-2 IEC 60947-2
pollution degree	3 conforming to EN 60947-2 3 conforming to IEC 60947-2
overvoltage category	IV
tropicalisation	2 conforming to IEC 60068-2
operating altitude	2000 m
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	242.0 g
Package 1 Height	7.5 cm
Package 1 width	3.5 cm
Package 1 Length	8.4 cm
Unit Type of Package 2	PAL
Number of Units in Package 2	576
Package 2 Weight	142.272 kg
Package 2 Height	60.0 cm
Package 2 width	80.0 cm
Package 2 Length	576.0 cm
Unit Type of Package 3	BB1
Number of Units in Package 3	6
Package 3 Weight	1.507 kg
Package 3 Height	9.0 cm
Package 3 width	8.0 cm
Package 3 Length	23.0 cm

Contractual warranty
Warranty	18
