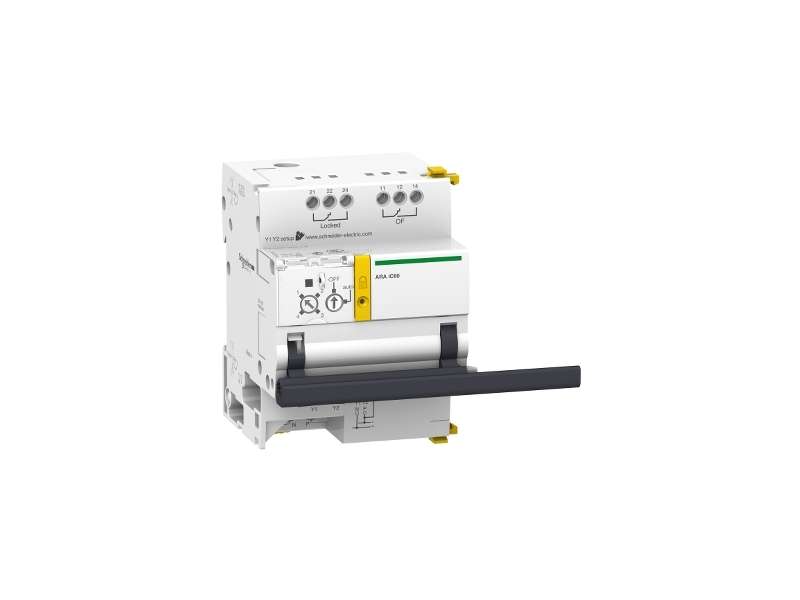

ARA auto recloser aux for iC60 3P-4P - 4 Prog
| range of product | Acti9 |
|---|---|
| Product or component type | Automatic recloser auxiliary |
| device short name | ARA iC60 |
| Signal contacts composition | 2 OF volt-free contacts |
| Signalling circuit voltage |
24 V 10 mA AC/DC 230 V 1 A AC |
| Control type |
Inhibition of automatism maintained 230 V AC 50/60 Hz Ultimate reclosing impulse 230 V AC 50/60 Hz |
|---|---|
| Input current | 5 mA |
| Impulse duration | >= 200 ms control circuit |
| Response time | < 500 ms |
| [Us] rated supply voltage | 230 V AC 50/60 Hz |
| Power consumption in W | 2 W |
| [Ui] rated insulation voltage | 400 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Value of setting |
Program 1: 1 reclosing attemp, short cycle <10 s before reclosing /6 min check time Program 2: 3 reclosing attemps, short cycle <10 s before reclosing /2 min check time Program 2: 3 reclosing attemps, short cycle <1 min before reclosing /6 min check time Program 2: 3 reclosing attemps, short cycle <3 min before reclosing /6 min check time Program 3: 5 reclosing attemps, long fixed cycle <10 s before reclosing /2 min check time Program 3: 5 reclosing attemps, long fixed cycle <1 min before reclosing /6 min check time Program 3: 5 reclosing attemps, long fixed cycle <3 min before reclosing /6 min check time Program 4: 5 reclosing attemps, long progressive cycle <10 s before reclosing /2 min check time Program 4: 5 reclosing attemps, long progressive cycle <1 min before reclosing /6 min check time Program 4: 5 reclosing attemps, long progressive cycle <3 min before reclosing /8 min check time Program 4: 5 reclosing attemps, long progressive cycle <4 min before reclosing /10 min check time Program 4: 5 reclosing attemps, long progressive cycle <5 min before reclosing /12 min check time |
| Local signalling |
Flashing orange LED: not operational Flashing green LED: normal operation Flashing red LED: reclosing cycle in progress Fixed red LED: automatic recloser locked |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 7 |
| Height | 93 mm |
| Width | 63 mm |
| Depth | 75.5 mm |
| Product weight | 470 g |
| Colour | White |
| Electrical durability | 5000 cycles |
| Provision for padlocking | Padlockable |
| Wire stripping length |
Power supply: 10 mm for bottom connection Input: 10 mm for bottom connection Output: 8 mm for top connection |
| Tightening torque |
Power supply: 1 N.m Input: 1 N.m Output: 0.7 N.m |
| Range compatibility | Acti 9 (Acti9 iC60) |
| Product compatibility |
4P iC60 3P iC60 |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Pollution degree | 3 conforming to IEC 60947 |
| Overvoltage category | II |
| Tropicalisation | 2 |
| Relative humidity | 93 % at 40 °C |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9 cm |
| Package 1 Width | 11 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 535 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.93 kg |
| Warranty | 18 months |
|---|
