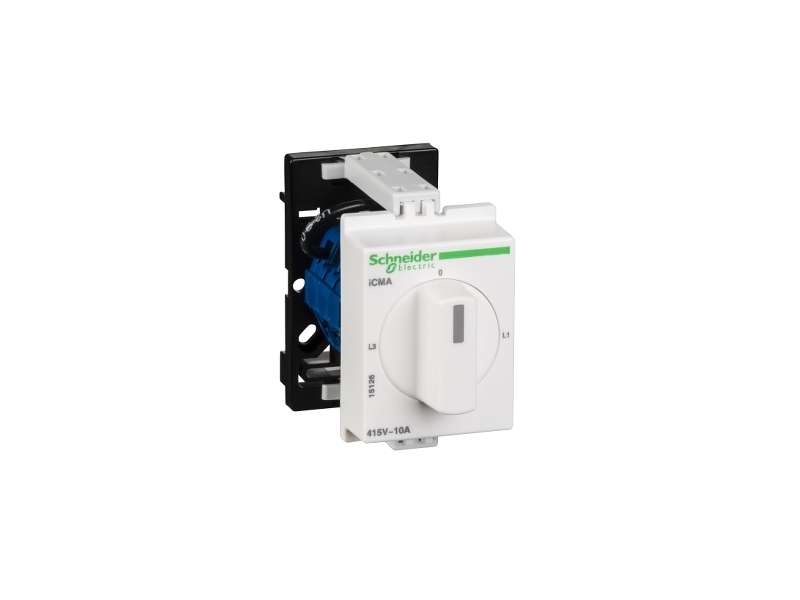

Schneider Electric Ampermetarski izborni prekidač iCMA - 10 A;15126

ammeter selector switch iCMA - 10 A...

Brand: Schneider Electric
Product Code: 15126
Availability: Check availability

VAT-exclusive price: 8.198,00

VAT-inclusive price: 9.837,60

Qnt:

Description
Specification

ammeter selector switch iCMA - 10 A

Main
range of product	Acti 9
range	Acti 9
product name	Acti9 iCM
product or component type	Selector switch
device short name	ICMA
device application	Ammeter selector
[Ue] rated operational voltage	< 440 V AC 50/60 Hz

Complementary
[Ith] conventional free air thermal current	10 A
[Ie] rated operational current	10 A
control type	Rotary handle 4 positions
marking	0 - L1 - L2 - L3
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	4
height	60 mm
width	36 mm
depth	75 mm
mechanical durability	2000000 cycles
electrical durability	1000000 cycles
connections - terminals	Captive screw-jumper terminals - <= 1.5 mm²

Environment
standards	IEC 60947-3
IP degree of protection	IP66 front face: IP20 terminals:
ambient air temperature for operation	-20…55 °C
ambient air temperature for storage	-25…80 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	77.0 g
Package 1 Height	4.0 cm
Package 1 width	8.0 cm
Package 1 Length	7.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	80
Package 2 Weight	6.691 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
