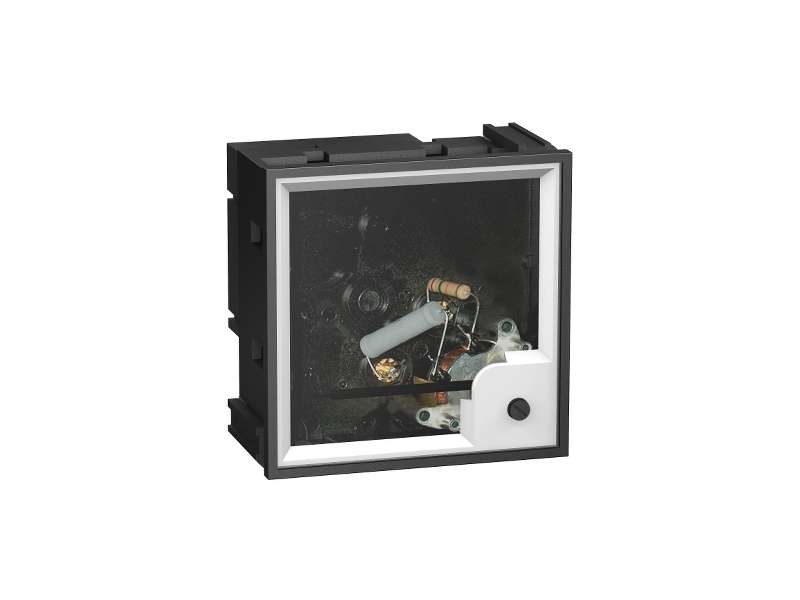

Schneider Electric Ampermetar AMP PowerLogic - 96 x 96 - feromagnetni - za standardne dovode;16074
ammeter AMP PowerLogic - 96 x 96 - ferromagnetic - for standard feeder...
VAT-exclusive price: 5.227,00 |
VAT-inclusive price: 6.272,40 |
ammeter AMP PowerLogic - 96 x 96 - ferromagnetic - for standard feeder
| range | PowerLogic |
|---|---|
| device short name | AMP |
| product or component type | Ammeter |
| range compatibility |
Prisma P door Prisma G door |
| technology type | Ferromagnetic |
| scale type | 80 mm over 90° |
| mounting support | Front face |
| type of measurement | Current |
|---|---|
| accuracy class | Class 1.5 |
| power consumption in VA | 1.1 VA |
| power consumption in VA | 1.1 VA |
| overload withstand |
1.2 In, permanently 10 In, 5 s |
| device mounting | Flush |
| operating position | 30°/vertical |
| width | 96 mm |
| height | 96 mm |
| depth | 75 mm |
| temperature drift | +/- 0.003 %/°C |
| standards |
IEC 61010-1 IEC 61000-4 IEC 60051-1 |
|---|---|
| IP degree of protection | IP52 |
| ambient air temperature for operation | -25…50 °C |
| reference temperature | 23 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 256.0 g |
| Package 1 Height | 11.4 cm |
| Package 1 width | 11.5 cm |
| Package 1 Length | 11.6 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 3.559 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
