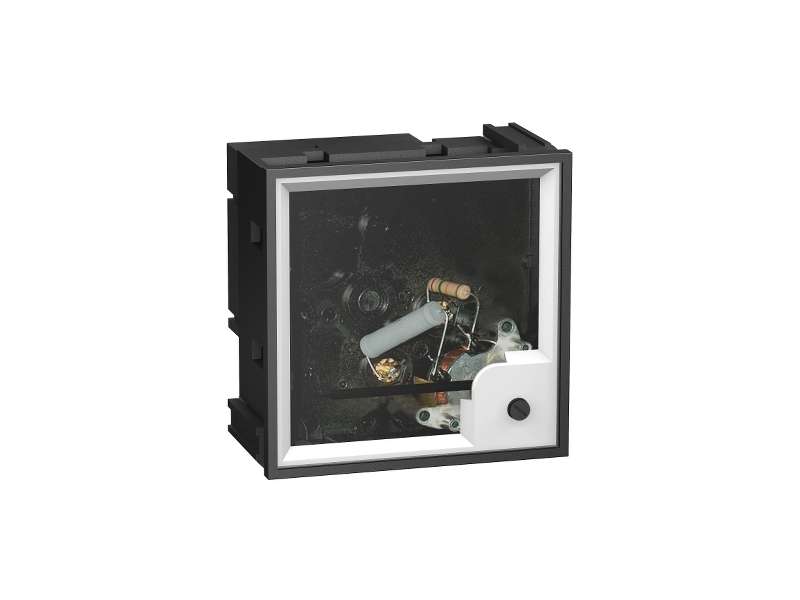

Schneider Electric Ampermetar AMP - 1.3 In bez skale - 72 x 72 mm;16004

analog ammeter AMP - 1.3 In without dial - 72 x 72 mm...

Brand: Schneider Electric
Product Code: 16004
Availability: Check availability

VAT-exclusive price: 5.395,00

VAT-inclusive price: 6.474,00

Qnt:

Description
Specification

analog ammeter AMP - 1.3 In without dial - 72 x 72 mm

Main
range	PowerLogic
device short name	AMP
product or component type	Ammeter
range compatibility	Prisma P door Prisma G door
technology type	Ferromagnetic
scale type	62 mm over 90°
mounting support	Front face

Complementary
type of measurement	Current
accuracy class	Class 1.5
power consumption in VA	1.1 VA
power consumption in VA	1.1 VA
overload withstand	1.2 In, permanently 10 In, 5 s
device mounting	Flush
operating position	30°/vertical
width	72 mm
height	72 mm
depth	75 mm
temperature drift	+/- 0.003 %/°C

Environment
standards	IEC 60051-1 IEC 61000-4 IEC 61010-1
IP degree of protection	IP52
ambient air temperature for operation	-25…50 °C
reference temperature	23 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	193.0 g
Package 1 Height	10.0 cm
Package 1 width	8.5 cm
Package 1 Length	9.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	33
Package 2 Weight	6.81 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
