Schneider Electric Aluminijumski goli konektori za kablove, Compact NSXm, za 1 kabl od 2,5 mm² do 70 mm², 125 A mak, set od 2 dela;LV426966

Schneider Electric Aluminijumski goli konektori za kablove, Compact NSXm, za 1 kabl od 2,5 mm² do 70 mm², 125 A mak, set od 2 dela;LV426966

aluminium bare cable connectors, ComPact NSXm, for 1 cable 2.5 mm² to 70 mm², 125 A max, set of 2 parts...

Brand: Schneider Electric
Product Code: LV426966
Availability: Check availability
Price on request

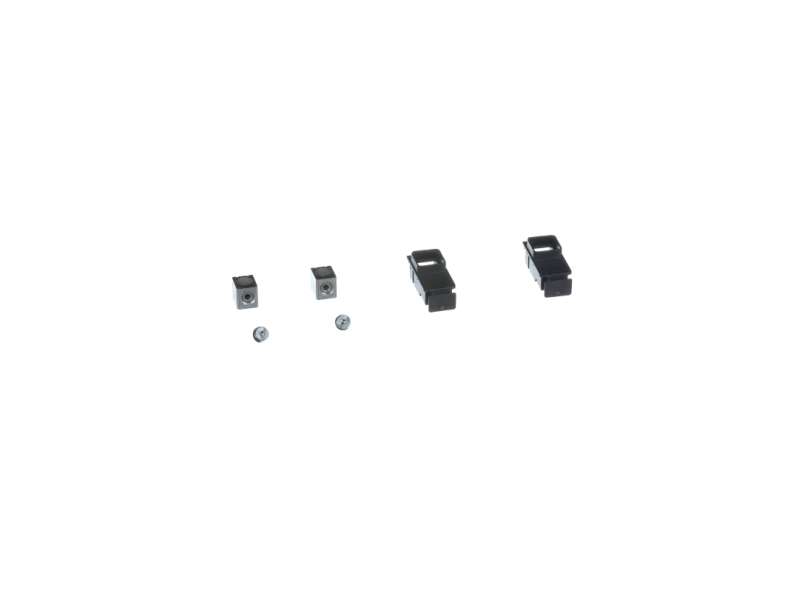

aluminium bare cable connectors, ComPact NSXm, for 1 cable 2.5 mm² to 70 mm², 125 A max, set of 2 parts



Main
range compatibility PowerPact B
ComPact NSXm
product or component type Cable connector
Accessory / separate part type Connection kit
poles description 2P
Complementary
quantity per set Set of 2
mounting mode Fixed
[In] rated current 16…125 A
conductor material Copper
Aluminium
connections - terminals Screw terminal2.5…70 mm² (AWG 14...AWG 2/0)

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 54.4 g
Package 1 Height 2.5 cm
Package 1 width 15.2 cm
Package 1 Length 17.8 cm
Unit Type of Package 2 BB1
Number of Units in Package 2 1
Package 2 Weight 78.04 g
Package 2 Height 5.0 cm
Package 2 width 15.0 cm
Package 2 Length 18.0 cm
Unit Type of Package 3 CAR
Number of Units in Package 3 10
Package 3 Weight 730.39 g
Package 3 Height 10.0 cm
Package 3 width 35.0 cm
Package 3 Length 52.0 cm
