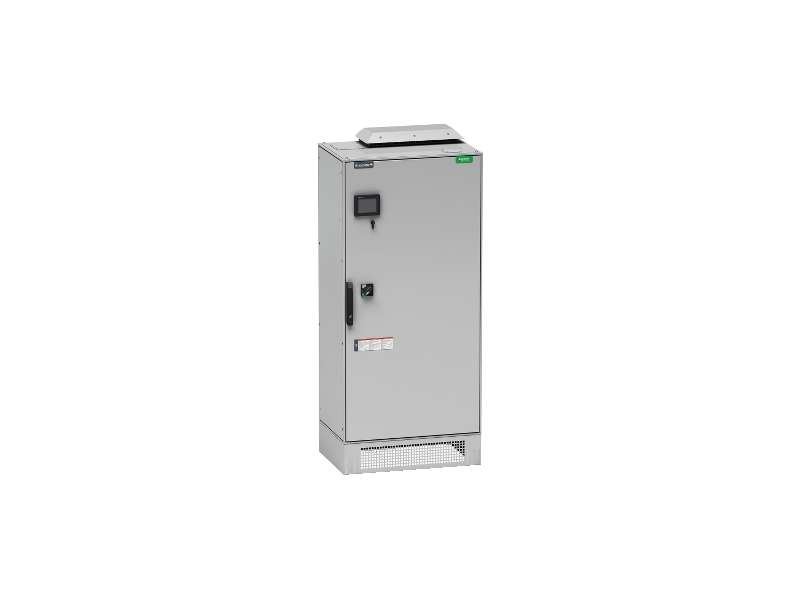

Schneider Electric Active harmonic filter - 200 A 380..480 V AC - IP31 enclosure;PCSP200D5IP31
Active harmonic filter - 200 A 380..480 V AC - IP31 enclosure...
VAT-exclusive price: 3.449.795,00 |
VAT-inclusive price: 4.139.754,00 |
Active harmonic filter - 200 A 380..480 V AC - IP31 enclosure
| range of product | AccuSine |
|---|---|
| product name | AccuSine PCS+ |
| product or component type | Active harmonic filter |
| Network type | 3P |
|---|---|
| Network configuration | 3 or 4 wires |
| network rated voltage | 380…480 V AC |
| network frequency | 50/60 Hz +/- 3 Hz auto sensing |
| maximum permissible voltage | 1.1 x Un |
| Neutral correction | Not provided |
| RMS output current rating | 200 A |
| reactive power rating | 166 kvar 480 V AC 50/60 Hz |
| Operating modes |
Mains current balancing Power factor correction Harmonic cancellation |
| Installation location | Indoor |
| enclosure mounting | Floor-standing |
| protection type | Circuit breaker protection |
| Disconnect type | Door-interlocked with rotary handle |
| Interrupt capacity | 200 kA |
| Heat dissipation | Rear plenum with forced ventilation for high heat flow |
| electromagnetic compatibility | Conducted EMC, class A conforming to EN 61000-6-4 |
| accessibility for operation | Front |
| location of connection | Top or bottom |
| Enclosure degree of protection | IP31 |
|---|---|
| environmental characteristic |
Operating: 3C2 conforming to IEC 60721-3-3 Operating: 3S2 conforming to IEC 60721-3-3 Storage: 3C3 conforming to IEC 60721-3-3 Storage: 3S3 conforming to IEC 60721-3-3 |
| operating altitude | <= 1000 m 1 % per 100 m |
| ambient air temperature for operation |
0…40 °C 0…50 °C maximum with current derating of 2 % per °C |
| relative humidity | 0…95 % |
| PCBA protection | Conformal coated |
| standards |
UL 60947-1 CSA C22.2 No 60947-1-07 CSA C22.2 No 14 EN 61000-6-4 UL 508 EN 60439-1 |
| product certifications |
CULus CE ABS RCM |
| ambient air temperature for storage | -20…60 °C |
| net weight | 355 kg |
| height | 2100 mm |
| width | 900 mm |
| colour | Light grey (RAL 7035) |
| depth | 600 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 504.0 kg |
| Package 1 Height | 226.0 cm |
| Package 1 width | 106.0 cm |
| Package 1 Length | 119.4 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 514.0 kg |
| Package 2 Height | 100.0 cm |
| Package 2 width | 120.0 cm |
| Package 2 Length | 240.0 cm |
| Package 3 Height | 100 cm |
| Warranty | 18 months |
|---|
