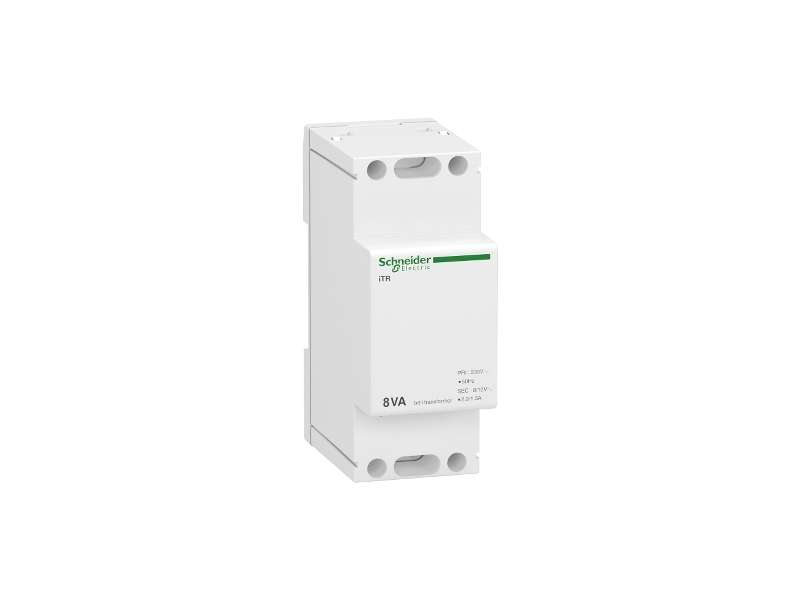

Schneider Electric Acti9 transformator za zvono iTR - 230 V 50..60 Hz - izlaz 8..12 V - 8 VA; A9A15216
Acti9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 8 VA...
VAT-exclusive price: 3.539,00 |
VAT-inclusive price: 4.246,80 |
Acti9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 8 VA
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iTR |
| Product or component type | Transformer |
| device short name | ITR |
| Transformer type | Bell transformer |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
|---|---|
| output voltage |
8/12 V: +/- 15 % on load 13/18 V: off load |
| Output short-circuit protection | Built-in |
| Rated power in VA | 8 VA |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 4 |
| Height | 89 mm |
| Width | 36 mm |
| Depth | 60 mm |
| Colour | White |
| auxiliary connection terminal |
Tunnel type terminalsrigid 2.5 mm² Tunnel type terminalsflexible 2.5 mm² Tunnel type terminalsflexible with ferrule 2.5 mm² |
| wire stripping length | 6 mm |
| tightening torque | 0.5 N.m |
| Standards |
EN 60742 EN 61558-2-6 IEC 61558-2-6 |
|---|---|
| Product certifications | NF |
| IP degree of protection | IP20 conforming to IEC 60529 |
| overvoltage category | Class II with terminal shields in option |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 270.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 28 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.786 kg |
| Warranty | 18 months |
|---|
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iTR |
| Product or component type | Transformer |
| device short name | ITR |
| Transformer type | Bell transformer |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
|---|---|
| output voltage |
8/12 V: +/- 15 % on load 13/18 V: off load |
| Output short-circuit protection | Built-in |
| Rated power in VA | 8 VA |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 4 |
| Height | 89 mm |
| Width | 36 mm |
| Depth | 60 mm |
| Colour | White |
| auxiliary connection terminal |
Tunnel type terminalsrigid 2.5 mm² Tunnel type terminalsflexible 2.5 mm² Tunnel type terminalsflexible with ferrule 2.5 mm² |
| wire stripping length | 6 mm |
| tightening torque | 0.5 N.m |
| Standards |
EN 60742 EN 61558-2-6 IEC 61558-2-6 |
|---|---|
| Product certifications | NF |
| IP degree of protection | IP20 conforming to IEC 60529 |
| overvoltage category | Class II with terminal shields in option |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 270.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 28 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.786 kg |
| Warranty | 18 months |
|---|
