Name: Schneider Electric Acti9 iPB 1NO jednostruki taster sivi; A9E18032
Brand: Schneider Electric
SKU: A9E18032
Price: 1435.20 RSD
Availability: OutOfStock

Schneider Electric Acti9 iPB 1NO jednostruki taster sivi; A9E18032

Acti9 iPB 1NO single push button grey; A9E18032...

Brand: Schneider Electric
Product Code: A9E18032
Availability: Check availability

VAT-exclusive price: 1.196,00

VAT-inclusive price: 1.435,20

Qnt:

Description
Specification

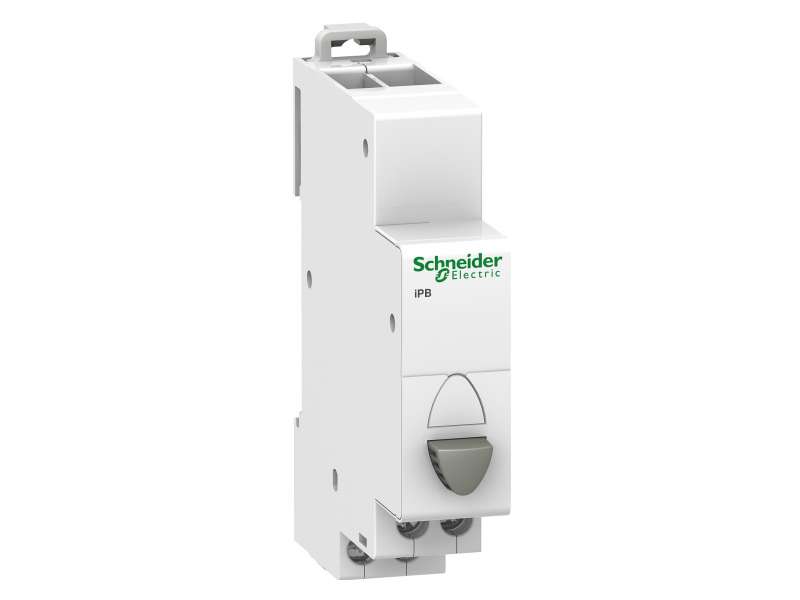

Acti9 iPB 1NO single push button grey; A9E18032

Main
range of product	Acti9
Product name	Acti9 iPB
Product or component type	Push-button
Device short name	iPB
Standards	IEC 60947-5-1 IEC 60669-1

Complementary
Contacts type and composition	1 NO
[Ie] rated operational current	20 A
[Ue] rated operational voltage	250 V AC
Control type	1 push-button grey
Mounting mode	Fixed
Mounting support	35 mm symmetrical DIN rail
Comb busbar and distribution block compatibility	Upside: Clario Upside: Librio Upside: ProDis
9 mm pitches	2
Height	82 mm
Width	18 mm
Depth	71 mm
Colour	White
Electrical durability	AC-22: 30000 cycles AC 50/60 Hz
Connections - terminals	Staggered tunnel terminal1 cable(s) 0.5 mm² rigid Staggered tunnel terminal1 cable(s) 0.5 mm² flexible Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule Staggered tunnel terminal2 cable(s) 2.5 mm² rigid Staggered tunnel terminal2 cable(s) 2.5 mm² flexible Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule
Wire stripping length	9 mm
Tightening torque	1 N.m
