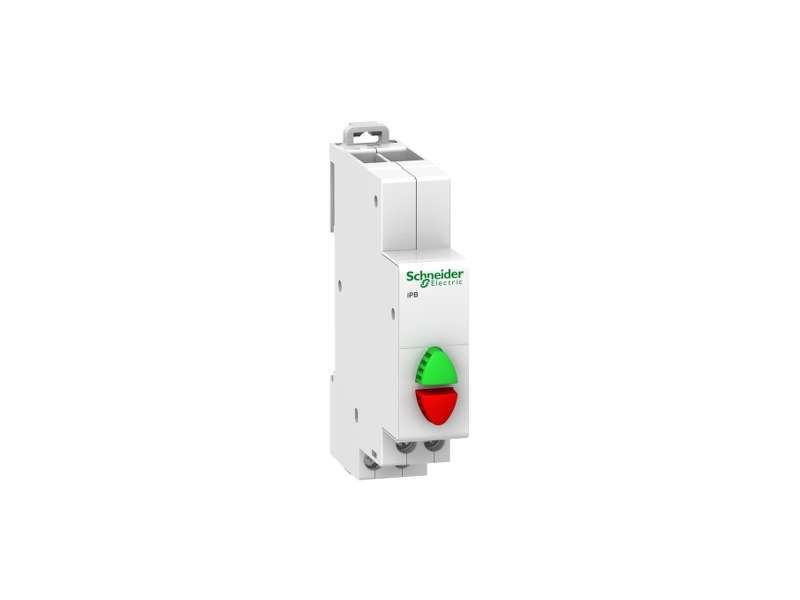

Schneider Electric Acti9 iPB 1NO-1NC dvostruki taster zeleni/crveni; A9E18034
Acti9 iPB 1NO-1NC double push button green/red...
VAT-exclusive price: 1.792,00 |
VAT-inclusive price: 2.150,40 |
Acti9 iPB 1NO-1NC double push button green/red
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iPB |
| Product or component type | Push-button |
| Device short name | IPB |
| Standards |
IEC 60947-5-1 IEC 60669-1 |
| Contacts type and composition |
1 NC 1 NO |
|---|---|
| [Ie] rated operational current | 20 A |
| [Ue] rated operational voltage | 250 V AC |
| Control type | 2 push-button green/red |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility |
Upside: Clario Upside: Librio Upside: ProDis |
| 9 mm pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 71.5 mm |
| Colour | White |
| Electrical durability | AC-22: 30000 cycles AC 50/60 Hz |
| Connections - terminals |
Staggered tunnel terminal1 cable(s) 0.5 mm² rigid Staggered tunnel terminal1 cable(s) 0.5 mm² flexible Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule Staggered tunnel terminal2 cable(s) 2.5 mm² rigid Staggered tunnel terminal2 cable(s) 2.5 mm² flexible Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Tropicalisation | 2 |
|---|---|
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 9 cm |
| Package 1 Weight | 47.61 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 23 cm |
| Package 2 Weight | 620 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.033 kg |
| Warranty | 18 months |
|---|
