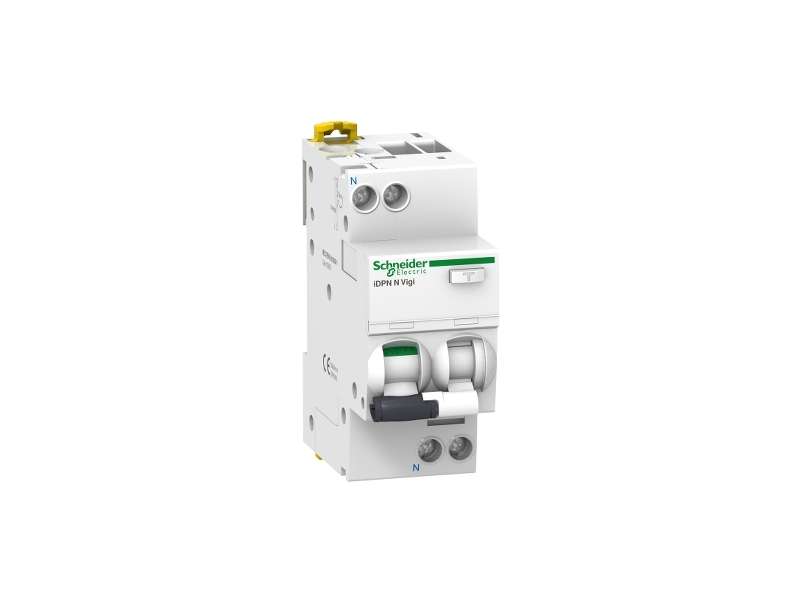

Schneider Electric Acti9 iDPN N Vigi - RCBO - 1P+N - 10A - C Curve - 6000A - 100mA - type A;A9D52610

Acti9 iDPN N Vigi - RCBO - 1P+N - 10A - C Curve - 6000A - 100mA - type A...

Brand: Schneider Electric
Product Code: A9D52610
Availability: Check availability

Price on request

Description
Specification

Acti9 iDPN N Vigi - RCBO - 1P+N - 10A - C Curve - 6000A - 100mA - type A

Main
range	Acti9
product name	Acti9 iDPN Vigi
product or component type	Residual current breaker with overcurrent protection (RCBO)
device short name	IDPN N Vigi
device application	Distribution
poles description	1P + N
number of protected poles	1
neutral position	Left
[In] rated current	10 A
network type	AC
trip unit technology	Thermal-magnetic
curve code	C
earth-leakage sensitivity	100 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type A
breaking capacity	6000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
suitability for isolation	Yes conforming to EN/IEC 60947-2

Complementary
device location in system	Outgoer
network frequency	50 Hz
[Ue] rated operational voltage	220...240 V AC 50 Hz
magnetic tripping limit	5...10 x In
residual current tripping technology	Voltage independent
[Ics] rated service breaking capacity	6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
rated breaking and making capacity	Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
limitation class	3 conforming to EN/IEC 61009-2-1
[Ui] rated insulation voltage	400 V AC 50 Hz
[Uimp] rated impulse withstand voltage	4 kV
contact position indicator	Yes
control type	Toggle
local signalling	ON, OFF, fault trip
mounting mode	Clip-on
mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom: YES
9 mm pitches	4
height	85 mm
width	36 mm
depth	73 mm
net weight	125 g
colour	White
mechanical durability	20000 cycles
electrical durability	20000 cycles
locking options description	Padlocking device
connections - terminals	Single terminal top or bottom 1…16 mm² rigid Single terminal top or bottom 1…10 mm² flexible Single terminal top or bottom 1…10 mm² flexible with ferrule
wire stripping length	15 mm for top or bottom connection
tightening torque	2 N.m top or bottom
earth-leakage protection	Integrated

Environment
standards	EN/IEC 61009-2-1
product certifications	VDE
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
pollution degree	3
overvoltage category	III conforming to IEC 60364
electromagnetic compatibility	8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 °C
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.5 cm
Package 1 Width	3.6 cm
Package 1 Length	7.8 cm
Package 1 Weight	230.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	54
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	13.357 kg
Unit Type of Package 3	BB1
Number of Units in Package 3	6
Package 3 Height	10.0 cm
Package 3 Width	9.0 cm
Package 3 Length	25.5 cm
Package 3 Weight	1.43 kg

Contractual warranty
Warranty	18 months
