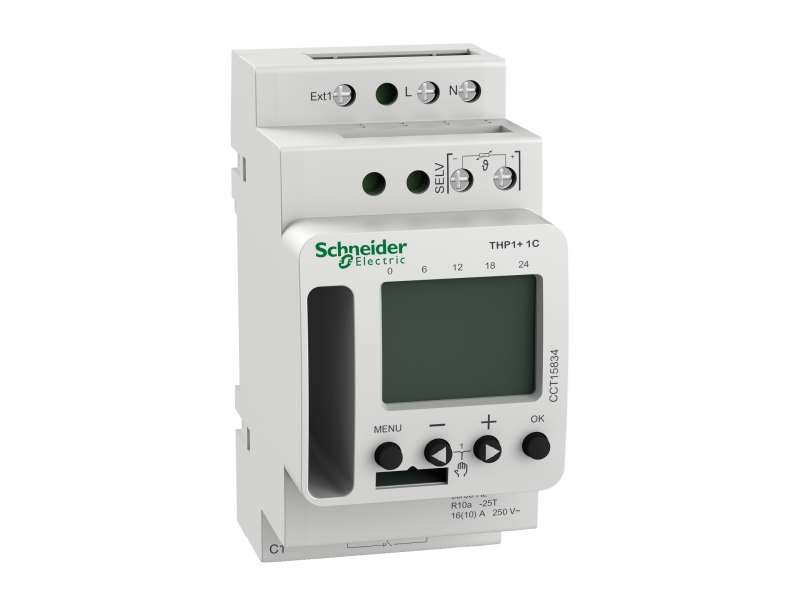

Schneider Electric Acti 9 THP1+ 1C (24h/7d) programabilni termostat; CCT15834

Acti9 THP1+ 1C (24h/7d) programmable thermostat...

Brand: Schneider Electric
Product Code: CCT15834
Availability: Check availability

VAT-exclusive price: 39.964,00

VAT-inclusive price: 47.956,80

Qnt:

Acti9 THP1+ 1C (24h/7d) programmable thermostat

Main
range of product	Acti9
Product name	Acti9 THP
Device short name	THP1
Product or component type	Programmable thermostat
Device application	Temperature control
Number of channels	1
language	English French German Polish Dutch Czech Romanian Spanish Danish Norwegian Swedish Finnish Hungarian Italian Slovene Croatian Serbian Bulgarian

Complementary
Maximum power consumption in W	0.8 W standby
[Ue] rated operational voltage	230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current	2 A - 250 V AC pf = 0.6 10 A - 250 V AC pf = 1
Minimum switching current	10 mA 230 V AC 100 mA 24 V AC/DC
Electrical insulation class	Class II
Control type	4 x push-button
Operating mode	Frost: 0…20 °C Comfort: 10…30 °C Reduced: 0…30 °C
contacts type	C/O
Accuracy	+/- 0.25 s/day 25 °C
maximum number of switchings	42
Function available	External input for override Code lock function Holiday schedules Automatic winter/summer time changeover Offset adjusts calibration for temperature for wall balance On/off permanent switching Switch preselection
Backup time	10 years
Temperature probe type	NTC
Display type	LCD
Connections - terminals	Screw terminals - 2 x 0.5...2 x 2.5 mm² - solid or flexible Screw terminals - 1 x 2.5 mm² - solid or flexible with sleeve
Mounting support	TH35 DIN rail conforming to EN 60715
Height	92.6 mm
Width	45 mm
Depth	66.7 mm
Net weight	150 g
Marking	CE
Overvoltage category	Class 3
Compatibility code	THP1+ 1C

Environment
Standards	EN 60730-2-9:2010
Ambient air temperature for operation	-25…55 °C
Ambient air temperature for storage	-30…70 °C
Relative humidity	90 %, non-condensing
IP degree of protection	IP20

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.5 cm
Package 1 Width	7.3 cm
Package 1 Length	10.3 cm
Package 1 Weight	181.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	40
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	7.62 kg
