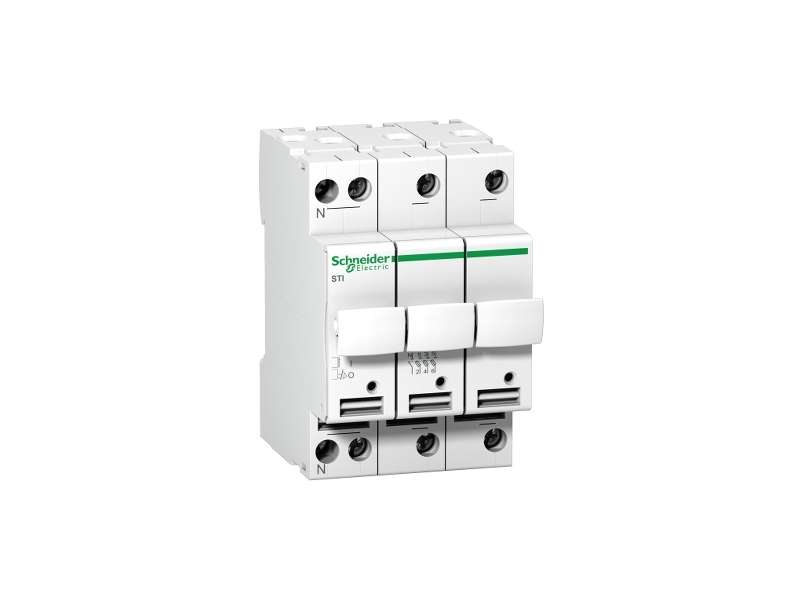

Schneider Electric Acti 9 - rastavljač sa osiguračima STI - 3P + N - 25 A-za osigurače 10.3 x 38 mm;A9N15658
Acti9 - fuse-disconnector STI - 3 poles + N - 25 A - for fuse 10.3 x 38 mm...
VAT-exclusive price: 2.873,00 |
VAT-inclusive price: 3.447,60 |
Acti9 - fuse-disconnector STI - 3 poles + N - 25 A - for fuse 10.3 x 38 mm
| range | Acti9 |
|---|---|
| product name | Acti9 STI |
| product or component type | Fuse-disconnector |
| device short name | STI |
| poles description | 3P + N |
| [In] rated current |
2 A 4 A 6 A 10 A 16 A 20 A 25 A |
|---|---|
| fuse curve |
AM GG |
| fuse size | 10.3 x 38 mm |
| [Ue] rated operational voltage | 500 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 6 |
| height | 81 mm |
| width | 54 mm |
| depth | 75 mm |
| colour | White |
| connections - terminals |
Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible |
| wire stripping length | 12 mm |
| tightening torque | 2 N.m |
| standards |
IEC 60269-1/2 IEC EN 60947-3 |
|---|---|
| IP degree of protection | IP20 |
| pollution degree | 3 |
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 8.6 cm |
| Number of Units in Package 1 | 1 |
| Package 3 Width | 30 cm |
| Package 3 Weight | 9.961 kg |
| Package 2 Width | 30 cm |
| Package 2 Height | 3.9 cm |
| Package 2 Weight | 785 g |
| Number of Units in Package 3 | 48 |
| Unit Type of Package 3 | S03 |
| Package 3 Height | 30 cm |
| Package 3 Length | 40 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Height | 5.4 cm |
| Package 1 Weight | 182 g |
| Number of Units in Package 2 | 4 |
| Unit Type of Package 2 | BB1 |
| Package 2 Length | 20 cm |
| range | Acti9 |
|---|---|
| product name | Acti9 STI |
| product or component type | Fuse-disconnector |
| device short name | STI |
| poles description | 3P + N |
| [In] rated current |
2 A 4 A 6 A 10 A 16 A 20 A 25 A |
|---|---|
| fuse curve |
AM GG |
| fuse size | 10.3 x 38 mm |
| [Ue] rated operational voltage | 500 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 6 |
| height | 81 mm |
| width | 54 mm |
| depth | 75 mm |
| colour | White |
| connections - terminals |
Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible |
| wire stripping length | 12 mm |
| tightening torque | 2 N.m |
| standards |
IEC 60269-1/2 IEC EN 60947-3 |
|---|---|
| IP degree of protection | IP20 |
| pollution degree | 3 |
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 8.6 cm |
| Number of Units in Package 1 | 1 |
| Package 3 Width | 30 cm |
| Package 3 Weight | 9.961 kg |
| Package 2 Width | 30 cm |
| Package 2 Height | 3.9 cm |
| Package 2 Weight | 785 g |
| Number of Units in Package 3 | 48 |
| Unit Type of Package 3 | S03 |
| Package 3 Height | 30 cm |
| Package 3 Length | 40 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Height | 5.4 cm |
| Package 1 Weight | 182 g |
| Number of Units in Package 2 | 4 |
| Unit Type of Package 2 | BB1 |
| Package 2 Length | 20 cm |
