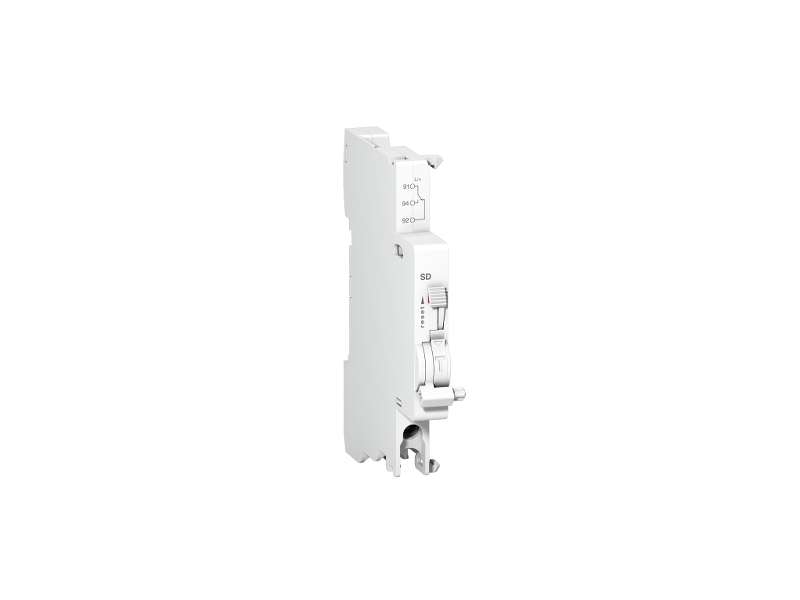

Schneider Electric Acti 9 - pomoćni kontakt OC plus 1 SD i OF AC DC;A9N26929

Acti9 - Auxiliary contact OC plus 1 SD and OF ac dc...

Brand: Schneider Electric
Product Code: A9N26929
Availability: Check availability

VAT-exclusive price: 4.836,00

VAT-inclusive price: 5.803,20

Qnt:

Description
Specification

Acti9 - Auxiliary contact OC plus 1 SD and OF ac dc

Main
range of product	Clario Acti 9 Prodis Librio
product or component type	Double OC or fault contact
device short name	OF and OF or OF and SD
signal contacts composition	2 C/O
[In] rated current	1 A: 130 V DC 2 A: 48 V DC 6 A: 24 V DC 3 A: 415 V AC - 50/60 Hz 6 A: 240 V AC - 50/60 Hz
9 mm pitches	1

Complementary
range compatibility	Acti9 DPN Vigi Acti9 RCCB-ID Acti9 iDPN Vigi Acti9 C60H-DC Acti 9 C60PV-DC Acti 9 C40 Acti9 ID C40 Acti 9 C120 Acti 9 DT40 Acti 9 DT60 Acti9 IDc Acti 9 C120NA-DC Acti 9 iDPN Acti9 ITG40 Acti 9 SW60-DC Acti 9 C60NA-DC Acti 9 C40 Vigi Acti 9 DT40 Vigi
mounting mode	Fixed
mounting support	DIN rail
comb busbar and distribution block compatibility	NO
height	90 mm
width	9 mm
depth	73.5 mm
net weight	38 g
colour	White
connections - terminals	Screw clamp terminal (top and bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (top and bottom) 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (top and bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
wire stripping length	9 mm
tightening torque	1 N.m

Environment
standards	EN/IEC 60947-5-1
product certifications	ASTA ASEFA LCIE KEMA
IP degree of protection	IP20 conforming to EN/IEC 60947-5-1
pollution degree	3 conforming to EN/IEC 60947-5-1
tropicalisation	2 conforming to EN/IEC 60947-5-1
ambient air temperature for operation	-25…50 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	46.0 g
Package 1 Height	2.2 cm
Package 1 width	8.0 cm
Package 1 Length	9.2 cm
Unit Type of Package 2	S03
Number of Units in Package 2	108
Package 2 Weight	5.94 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	BB1
Number of Units in Package 3	12
Package 3 Weight	606.0 g
Package 3 Height	8.7 cm
Package 3 width	10.0 cm
Package 3 Length	26.5 cm
