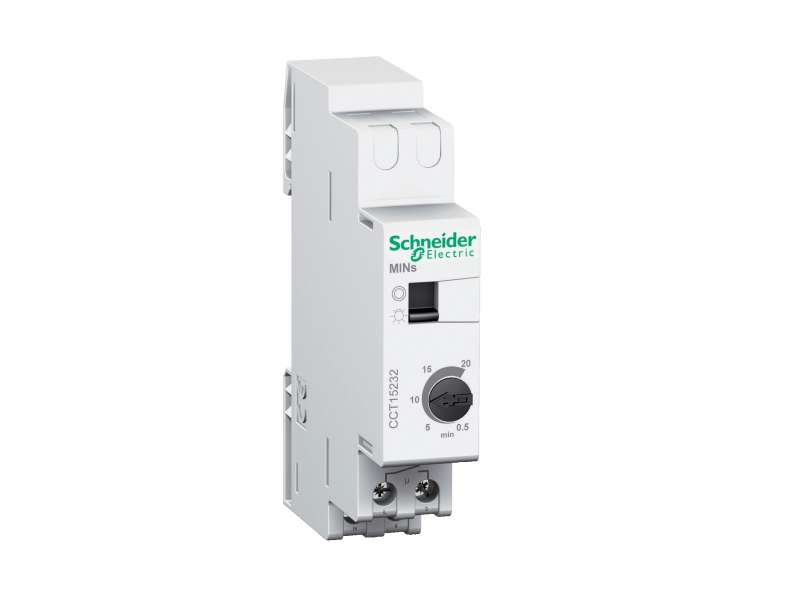

Schneider Electric Acti 9 - MINs - tihi elektronski tajmer - podešavanje od 0.5 do 20 minuta; CCT15232
Acti9 - MINs - silent electronic timer - adjustable from 0.5 to 20 minutes; CCT15232...
VAT-exclusive price: 8.992,00 |
VAT-inclusive price: 10.790,40 |
Acti9 - MINs - silent electronic timer - adjustable from 0.5 to 20 minutes; CCT15232
| range of product | Acti9 |
|---|---|
| Product name | Acti9 MIN |
| Device short name | MINs |
| Product or component type | Silent electronic timer |
| Product compatibility | Mechanical compatibility with electrical comb busbars |
| Colour tint | White (RAL 9003) |
| Device application | Building |
|---|---|
| Load type |
230 V AC halogen lamp 2300 W 230 V AC incandescent lamp 2300 W Fluorescent lamp 9 x electronic ballast 7 W Dual mounted fluorescent tubeconventional ballast 2300 VA Fluorescent tubeelectronic ballast 300 VA Non-corrected fluorescent tubeconventional ballast 2300 VA Serial-corrected fluorescent tubeconventional ballast 2300 VA Fluorescent lamp 7 x electronic ballast 11 W Fluorescent lamp 7 x electronic ballast 15 W Fluorescent lamp 7 x electronic ballast 20 W Fluorescent lamp 7 x electronic ballast 23 W Fluocompact lampconventional ballast 1500 VA Parallel-corrected fluorescent tubeconventional ballast 400 VA |
| Power consumption in VA | 6 VA |
| Maximum switching current | 16 A - 230 V AC pf = 1 |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Time delay | Adjustable from 0.5 to 20 minutes |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Connections - terminals | Screw terminals - <= 6 mm² |
| Electrical insulation class | Class II |
| Width | 18 mm |
| Height | 89 mm |
| Depth | 66 mm |
| Net weight | 75 g |
| Ambient air temperature for operation | -10…50 °C |
|---|---|
| IP degree of protection | IP20 B |
