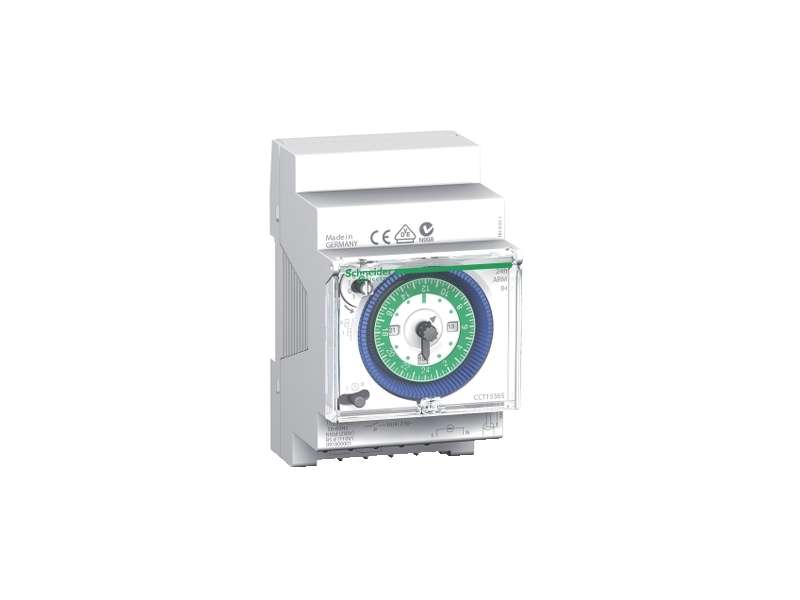

Schneider Electric Acti 9 - IH - mehanički vremenski prekidač - 24 h - 200 h memorija;CCT15365
Acti9 - IH - mechanical time switch - 24 h - 150 h memory...
VAT-exclusive price: 8.175,00 |
VAT-inclusive price: 9.810,00 |
Acti9 - IH - mechanical time switch - 24 h - 150 h memory
| range of product | Acti 9 |
|---|---|
| product name | Acti 9 IH |
| device short name | IH |
| product or component type | Mechanical time switch |
| Number of channels | 1 |
| function available | Manual time changeover |
| device application | Building |
|---|---|
| load type |
230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1100 W 230 V AC fluocompact lamp 600 VA Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF Compact fluorescent lampelectronic ballast 25 W LED lamp < 2 W 20 W LED lamp > 2 W 180 W |
| cycle duration | 24 h |
| maximum number of switchings | 48 on - 48 off |
| minimum interval duration | 15 min |
| type of setting | Manual time changeover |
| measurement accuracy | +/- 1 s/day 20 °C |
| power consumption in W | 0.5 W |
| maximum switching current |
16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 110...230 V AC at 50...60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| battery life | 6 year(s) |
| backup time |
150 h time and program saving 230 V AC 75 h time and program saving 110 V AC |
| mounting support | DIN rail |
| 9 mm pitches | 6 |
| colour tint | White (RAL 9003) |
| connections - terminals | Screwless terminals |
| clamping connection capacity | 2 x 0.5...2 .5 mm² |
| width | 54 mm |
| height | 90 mm |
| depth | 66 mm |
| net weight | 0.198 kg |
| standards | EN 60730-1 |
| ambient air temperature for operation | -20…55 °C |
|---|---|
| pollution degree | 2 |
| IP degree of protection | IP20 conforming to EN 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 152.0 g |
| Package 1 Height | 7.5 cm |
| Package 1 width | 6.5 cm |
| Package 1 Length | 10.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Weight | 5.943 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
