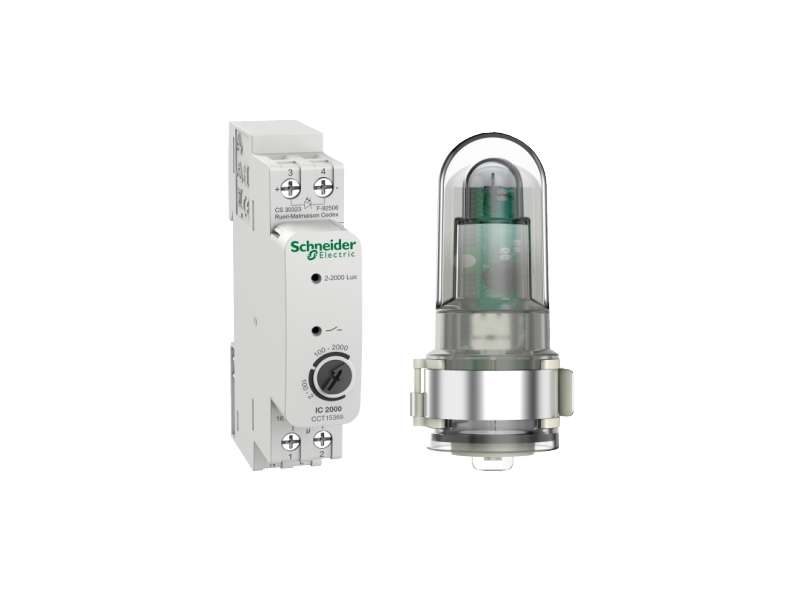

Schneider Electric Acti 9 IC2000 (2 - 2000 lux) svetlosni prekidač za ugradnju na otvorenom; CCT15369
Acti9 IC2000 outdoor (2 - 2000 lux) twilight switch; CCT15369...
VAT-exclusive price: 15.328,00 |
VAT-inclusive price: 18.393,60 |
Acti9 IC2000 outdoor (2 - 2000 lux) twilight switch; CCT15369
| range of product | Acti9 |
|---|---|
| Product name | Acti9 IC |
| Product or component type | Twilight switch |
| Device short name | IC2000 |
| Provided equipment | twilight sensor outdoor |
| Load type |
incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2300 VA serial-compensated fluorescent tube: 2300 VA parallel compensated fluorescent lamp: 730 VA (80 µF) compact fluorescent lamp: 170 W < 2 W LED lamp: 30 W > 2 W LED lamp: 200 W |
| Device application | Building |
|---|---|
| Number of channels | 1 |
| Maximum power consumption in W | 0.5 W stand by |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Maximum switching current |
10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Minimum switching current |
10 mA 230 V AC 100 mA 24 V AC/DC |
| Electrical insulation class | Class II |
| Output type | Dry contact |
| Accuracy | +/- 0.25 s/day 25 °C |
| Contacts type and composition | 1 NO |
| Time delay |
20 s on 80 s off |
| Light intensity adjustment | 2…2000 lux |
| Connections - terminals |
1 x 2.5 mm² screw terminals solid or flexible with sleeve 2 x 0.5…2.5 mm² screw terminals solid or flexible |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Height | 85.5 mm |
| Width | 18 mm |
| Depth | 67 mm |
| Net weight | 111 g |
| Overvoltage category | Class 3 |
| Marking | CE |
| Control type | By brightness detection |
| Ambient air temperature for operation | -30…55 °C |
|---|---|
| ambient air temp for storage/transportation | -30…70 °C |
| Relative humidity | 90 %, non-condensing |
| IP degree of protection |
IP20 IP55 (sensor) |
| Standards | EN 60669-2-1 |
