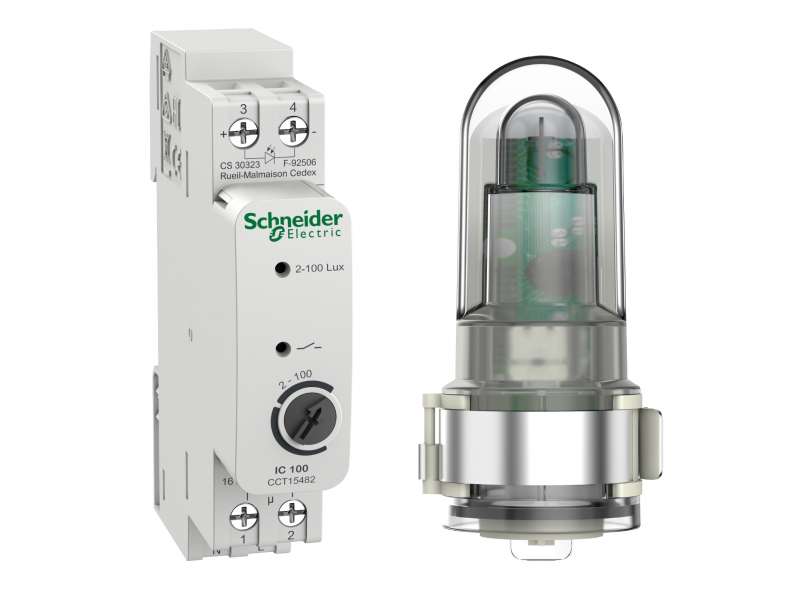

Name: Schneider Electric Acti 9 IC100 (2 - 100 lux) svetlosni prekidač; CCT15482
Brand: Schneider Electric
SKU: CCT15482
Price: 16188.00 RSD
Availability: OutOfStock

Schneider Electric Acti 9 IC100 (2 - 100 lux) svetlosni prekidač; CCT15482

Schneider Acti9 IC100 (2 - 100 lux) twilight switch; CCT15482...

Brand: Schneider Electric
Product Code: CCT15482
Availability: Check availability

VAT-exclusive price: 13.490,00

VAT-inclusive price: 16.188,00

Qnt:

Schneider Acti9 IC100 (2 - 100 lux) twilight switch; CCT15482

Main
range of product	Acti9
product name	Acti 9 IC
product or component type	Twilight switch
device short name	IC100
provided equipment	twilight sensor outdoor
load type	incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2300 VA serial-compensated fluorescent tube: 2300 VA parallel compensated fluorescent lamp: 730 VA (80 µF) compact fluorescent lamp: 170 W < 2 W LED lamp: 30 W > 2 W LED lamp: 200 W

Complementary
device application	Building
Number of channels	1
maximum power consumption in W	0.5 W stand by
[Ue] rated operational voltage	230 V AC +10 % -15 % at 50/60 Hz
maximum switching current	10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1
minimum switching current	10 mA 230 V AC 100 mA 24 V AC/DC
electrical insulation class	Class II
output type	Dry contact
accuracy	+/- 0.25 s/day 25 °C
contacts type and composition	1 NO
time delay	20 s on 80 s off
light intensity adjustment	2…100 lux
connections - terminals	1 x 2.5 mm² screw terminals solid or flexible with sleeve 2 x 0.5…2.5 mm² screw terminals solid or flexible
mounting support	TH35 DIN rail conforming to EN 60715
Height	85.5 mm
width	18 mm
Depth	67 mm
Net weight	111 g
overvoltage category	Class 3
Marking	CE
control type	By brightness detection

Environment
Ambient air temperature for operation	-30…55 °C
ambient air temp for storage/transportation	-30…70 °C
relative humidity	90 %, non-condensing
IP degree of protection	IP20 IP55 (sensor)
standards	EN 60669-2-1
