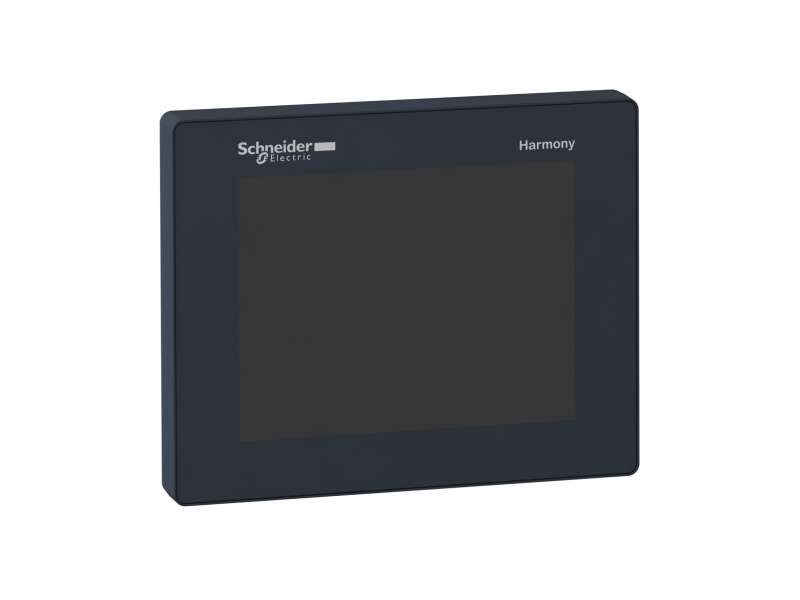

Schneider Electric 5.7'' prednji panel sa ekranom osetljivim na dodir za STU/SCU LED TFT LCD u boji; HMIS85
5in7 small touchscreen display front module Backlight LED Color TFT LCD...
VAT-exclusive price: 36.227,00 |
VAT-inclusive price: 43.472,40 |
5in7 small touchscreen display front module Backlight LED Color TFT LCD
| range of product |
Harmony SCU
|
|
|---|---|---|
| product or component type |
Small touchscreen display HMI
|
|
| display size |
5.7 inch
|
|
| pixel resolution |
320 x 240 pixels QVGA
|
| display type |
with backlit LED colour TFT LCD
|
|
|---|---|---|
| touch panel |
Analogue
|
|
| backlight lifespan |
50000 hours with 65536 colours
|
|
| brightness |
16 levels via touch panel
|
|
| view angle horiz x vert |
60° left
60° right 40° top 60° bottom |
|
| character font |
Korean
Chinese (simplified Chinese) ASCII Taiwanese (traditional Chinese) Japanese (ANK, Kanji) |
|
| width |
163 mm
|
|
| depth |
129.4 mm
|
|
| net weight |
0.405 kg
|
| Package 1 Weight |
0.702 kg
|
|
|---|---|---|
| Package 1 Height |
55.000 mm
|
|
| Package 1 width |
185.000 mm
|
|
| Package 1 Length |
270.000 mm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Magelis SCU HMIS85
