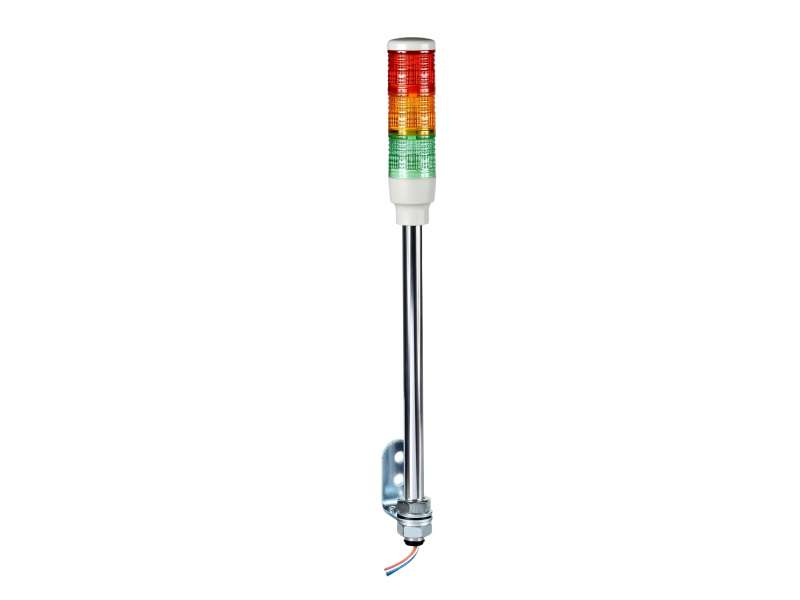

Schneider Electric 40mm svetlosna kolona CNZ na dršci ; XVC4B3
Monolithic tower light, red-orange-green, Ø40, tube mounting, steady, without buzzer, IP23, 24 V AC/DC...
VAT-exclusive price: 18.384,00 |
VAT-inclusive price: 22.060,80 |
Monolithic tower light, red-orange-green, Ø40, tube mounting, steady, without buzzer, IP23, 24 V AC/DC
| range of product |
Harmony XVC4
|
|
|---|---|---|
| product or component type |
Complete pre-wired monolithic tower light
|
|
| beacon or indicator bank unit type |
3 illuminated units
|
|
| sound signalling |
Without
|
|
| mounting diameter |
40 mm
|
|
| component name |
XVC
|
|
| device short name |
XVC
|
|
| light source |
LED steady red
LED steady orange LED steady green |
|
| supply circuit type |
AC/DC
|
| material |
Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit PBT + ABS (UL94HB): top cover SGP (chromium-plated): support tube |
|
|---|---|---|
| mounting location |
On support tube, 17 mm
|
|
| product mounting |
On support tube, 17 mm
|
|
| [Us] rated supply voltage |
24 V
|
|
| [Us] rated supply voltage |
24 V
|
|
| cable cross section |
0.33 mm²
|
|
| AWG gauge |
AWG 22
|
|
| cable length |
600 mm
|
|
| marking |
CE
|
|
| [Uimp] rated impulse withstand voltage |
0.8 kV
|
|
| current consumption |
75 mA
|
|
| flashing frequency |
1 Hz
|
|
| net weight |
0.54 kg
|
|
| height |
473.5 mm
|
| standards |
EN/IEC 61000-6-3
EN/IEC 61000-6-2 |
|
|---|---|---|
| product certifications |
UL
|
|
| protective treatment |
TC
|
|
| ambient air temperature for storage |
-35…70 °C
|
|
| ambient air temperature for operation |
-10…50 °C
|
|
| electrical shock protection class |
Class I conforming to EN/IEC 61140
|
|
| overvoltage category |
Class I conforming to EN/IEC 61140
|
|
| IP degree of protection |
IP23 vertical surface installation conforming to EN/IEC 60529
|
| Package 1 Weight |
0.540 kg
|
|
|---|---|---|
| Package 1 Height |
0.680 dm
|
|
| Package 1 width |
0.680 dm
|
|
| Package 1 Length |
7.520 dm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
