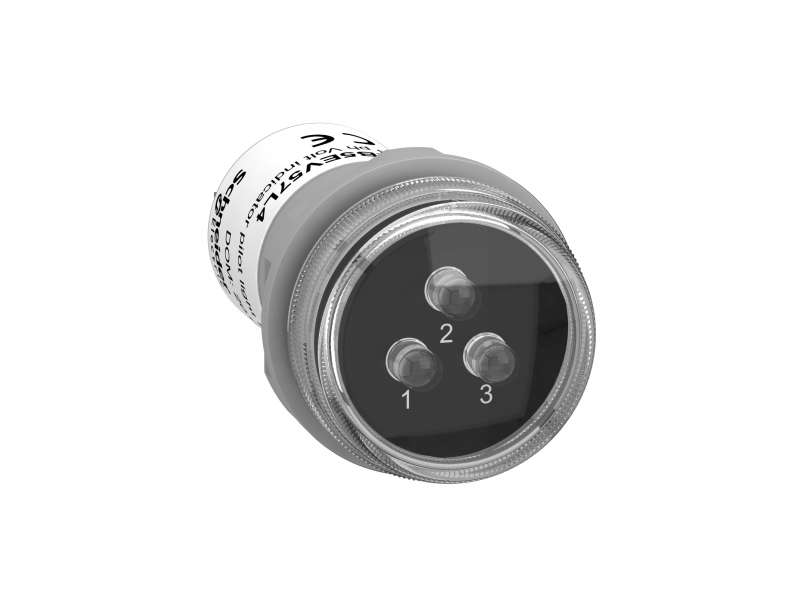

Schneider Electric 400 VAC - indikator prisustva faza - lampice sa 3 bele LED lampice;XB5EV57L4
Monolithic pilot light 3 phases voltage, plastic, Ø30, indicator with 3 LED, white, 400 V AC...
VAT-exclusive price: 16.234,00 |
VAT-inclusive price: 19.480,80 |
Monolithic pilot light 3 phases voltage, plastic, Ø30, indicator with 3 LED, white, 400 V AC
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Monolithic pilot light
|
|
| device short name |
XB5
|
|
| bezel material |
Plastic
|
|
| fixing collar material |
Plastic
|
|
| mounting diameter |
30 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
Clear
|
|
| light source |
Protected LED
|
|
| bulb base |
Integral LED
|
|
| light source colour |
White
|
|
| network number of phases |
3 phases
|
|
| device presentation |
Monolithic product
|
| height |
65.5 mm
|
|
|---|---|---|
| width |
36 mm
|
|
| depth |
77 mm
|
|
| net weight |
0.065 kg
|
|
| connections - terminals |
Faston terminals, connection size: 6.3 mm conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
1 kV IEC 61000-4-5
|
|
| compatibility code |
XB5
|
|
| supply voltage limits |
450 V AC
|
|
| current consumption |
2.6 mA
|
|
| service life |
100000 h at rated voltage and 25 °C
|
|
| surge withstand |
1 kV conforming to IEC 61000-4-5
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-30…70 °C
|
|
| IP degree of protection |
IP55 (front face) conforming to IEC 60529
IP67 (front face) IP20 (back face) |
|
| IK degree of protection |
IK10 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-1
EN/IEC 60947-5-4 EN/IEC 60947-1 |
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| electromagnetic compatibility |
Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
63 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
4.5 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
50
|
|
| Package 2 Weight |
3.375 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
-
Harmony XB5 XB5EV57L4
