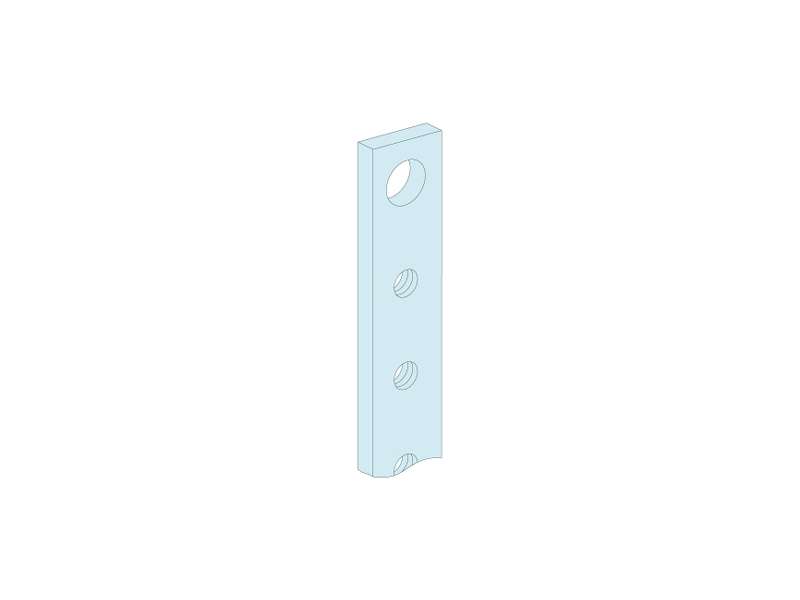

Schneider Electric 4 ravne sabirnice sa provrtima 400A L1400 za Linergy BS sabirnicu; LVS04173

Busbar, Linergy BS, 4 threaded bars, 400A, vertical, flat bar, 32x 5mm, L1400mm...

Brand: Schneider Electric
Product Code: LVS04173
Availability: Check availability

VAT-exclusive price: 37.649,00

VAT-inclusive price: 45.178,80

Qnt:

Description
Specification

Busbar, Linergy BS, 4 threaded bars, 400A, vertical, flat bar, 32x 5mm, L1400mm

Main
Range	Linergy
Range of product	Linergy
Product or component type	Busbar
Product name	Linergy BS
Range compatibility	PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure
Busbar description	Flat bar
Quantity per set	Set of 4

Complementary
Installation direction	Vertical, operating position: rear
installation description	Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm
[Ie] rated operational current	400 A at 35 °C
[Icw] rated short-time withstand current	20 kA (1 s) for 4 supports
[Ipk] rated peak withstand current	55 kA
Busbar cross section	32 x 5 mm
Length	1400 mm
Width	32 mm
Depth	5 mm
Net weight	8 kg
Colour	Natural
Type of busbar connection	M6 threaded hole
Connection pitch	Connection each 25 mm

Environment
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.6 cm
Package 1 Width	17.0 cm
Package 1 Length	154.0 cm
Package 1 Weight	7.885 kg
Unit Type of Package 2	P2M
Number of Units in Package 2	56
Package 2 Height	29.0 cm
Package 2 Width	120.0 cm
Package 2 Length	200.0 cm
Package 2 Weight	461.5 kg
