Schneider Electric 3 priključka - 2 kabla - 35..240 mm²

aluminium bare cable connectors, ComPact NSX, EasyPact CVS, for 2 cables 35 mm² to 240 mm², 630 A, set of 3 parts...

Brand: Schneider Electric
Product Code: LV432481 old
Availability: Check availability

VAT-exclusive price: 5.514,97

VAT-inclusive price: 6.617,97

Qnt:

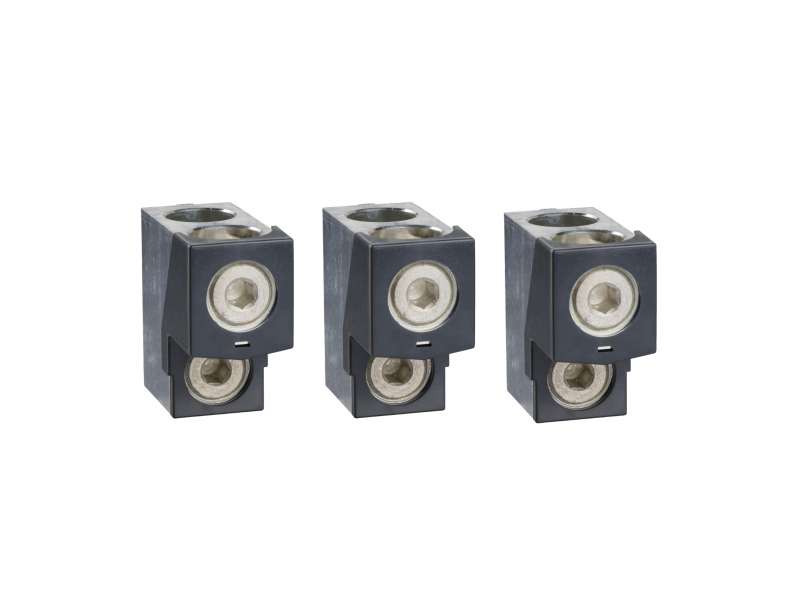

aluminium bare cable connectors, ComPact NSX, EasyPact CVS, for 2 cables 35 mm² to 240 mm², 630 A, set of 3 parts

Main
device short name	Connectors
product or component type	Bare cable connector
accessory / separate part category	Connection accessory
range compatibility	ComPact NSX400 ComPact NSX630 Compact NSX400 DC Compact NSX630 DC EasyPact CVS400 EasyPact CVS630 INS320 INS400 INS500 INS630 INV320 INV400 INV500 INV630
quantity per set	Set of 3

Complementary
[In] rated current	630 A
conductor material	Aluminium
connections - terminals	Screw terminal2 cable(s) 35…240 mm²

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	870 g
Package 1 Height	6.5 cm
Package 1 width	20 cm
Package 1 Length	25 cm
Unit Type of Package 2	S03
Number of Units in Package 2	15
Package 2 Weight	13.537 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
Unit Type of Package 3	P12
Number of Units in Package 3	120
Package 3 Weight	120.296 kg
Package 3 Height	80 cm
Package 3 width	80 cm
Package 3 Length	120 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
