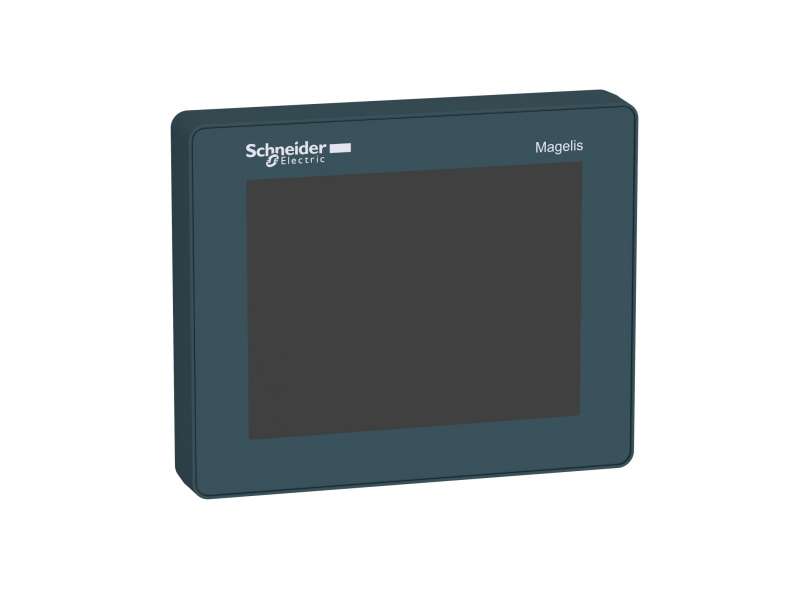

Schneider Electric 3''5 prednji panel za SCU/STU - pozadinsko osvetljenje LED - u boji TFT LCD; HMIS65
3in5 small touchscreen display front module Backlight LED Color TFT LCD...
VAT-exclusive price: 25.081,00 |
VAT-inclusive price: 30.097,20 |
3in5 small touchscreen display front module Backlight LED Color TFT LCD
| range of product |
Harmony SCU
|
|
|---|---|---|
| product or component type |
Small touchscreen display HMI
|
|
| display size |
3.5 inch
|
|
| pixel resolution |
320 x 240 pixels QVGA
|
| display type |
with backlit LED colour TFT LCD
|
|
|---|---|---|
| touch panel |
Analogue
|
|
| backlight lifespan |
50000 hours with 65536 colours
|
|
| brightness |
16 levels via touch panel
|
|
| view angle horiz x vert |
60° left
60° right 40° top 60° bottom |
|
| character font |
Korean
Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese) |
|
| width |
97.6 mm
|
|
| depth |
80 mm
|
|
| net weight |
0.53 kg
|
| Package 1 Weight |
0.304 kg
|
|
|---|---|---|
| Package 1 Height |
55.000 mm
|
|
| Package 1 width |
130.000 mm
|
|
| Package 1 Length |
190.000 mm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Magelis SCU HMIS65
