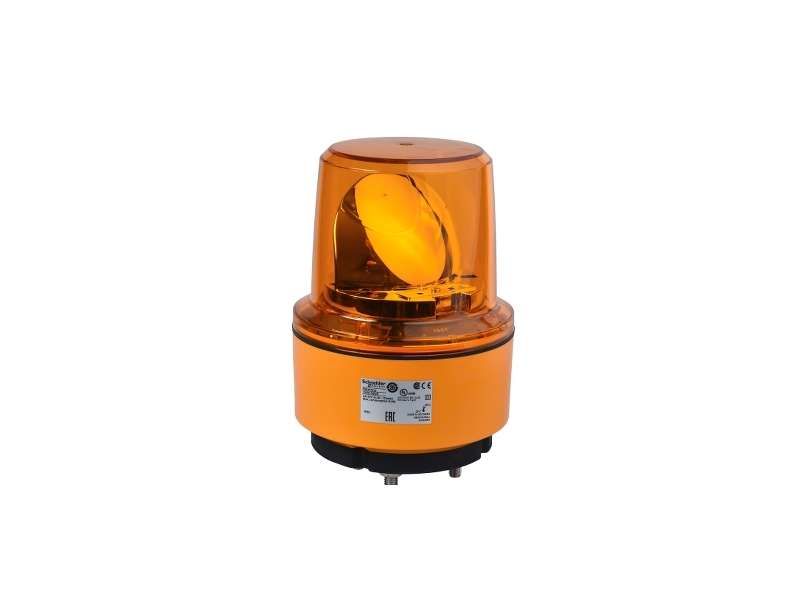

Schneider Electric 130mm rotirajuća svetiljka narandžasta 12VDC;XVR13J05

Prewired rotating mirror beacon, Harmony XVR, 130 mm, orange, without buzzer, 12 V DC...

Brand: Schneider Electric
Product Code: XVR13J05
Availability: Check availability

VAT-exclusive price: 32.546,00

VAT-inclusive price: 39.055,20

Qnt:

Description
Specification

Prewired rotating mirror beacon, Harmony XVR, 130 mm, orange, without buzzer, 12 V DC

Main
range of product	Harmony XVR
product or component type	Prewired rotating mirror beacon
sound signalling	Without
device short name	XVR
mounting diameter	130 mm
IP degree of protection	IP66 (resistant to vibration) conforming to IEC 60529
[Us] rated supply voltage	12 V DC
light source	High luminosity LED, orange

Complementary
material	ABS (acrylonitrile butadiene-styrene): body part PC: globe
CAD overall width	130 mm
CAD overall depth	130 mm
net weight	0.8 kg
marking	CE
product mounting	By 3 M8 screws
supply voltage limits	10…15 V DC
[Uimp] rated impulse withstand voltage	0.8 kV
current consumption	250 mA
flashing frequency	2.7 Hz
clamping connection capacity	1.25 mm²
AWG gauge	AWG 18
cable length	400 mm

Environment
standards	EN 61000-6-2 EN 61000-6-4
protective treatment	TC
ambient air temperature for storage	-35…70 °C
ambient air temperature for operation	-30…50 °C
electrical shock protection class	Class II conforming to IEC 61140

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.218 kg
Package 1 Height	27.0 cm
Package 1 width	19.5 cm
Package 1 Length	19.5 cm
Unit Type of Package 2	S04
Number of Units in Package 2	6
Package 2 Weight	8.51 kg
Package 2 Height	30.0 cm
Package 2 width	40.0 cm
Package 2 Length	60.0 cm
