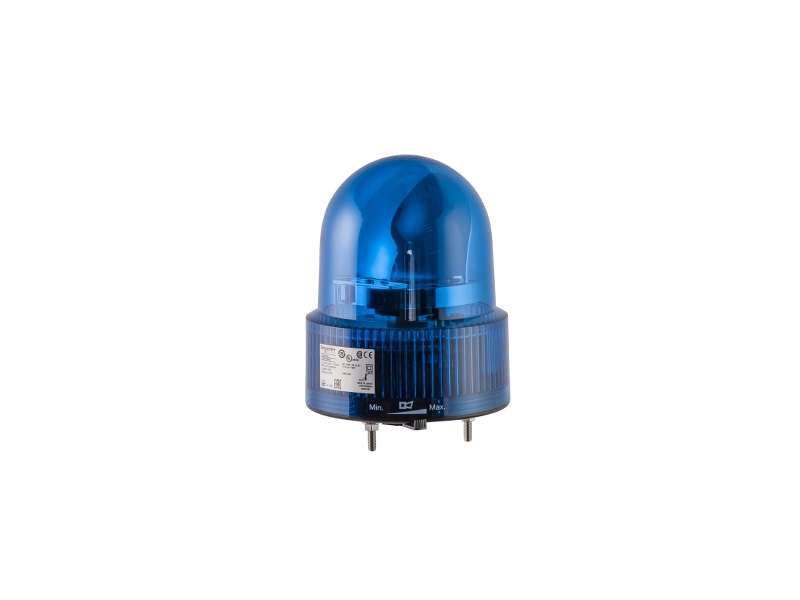

Schneider Electric 120mm rotirajuća svetiljka plava 24VAC-DC;XVR12B06

Prewired rotating mirror beacon, Harmony XVR, 120 mm, blue, without buzzer, 24 V AC DC...

Brand: Schneider Electric
Product Code: XVR12B06
Availability: Check availability

VAT-exclusive price: 25.370,00

VAT-inclusive price: 30.444,00

Qnt:

Description
Specification

Prewired rotating mirror beacon, Harmony XVR, 120 mm, blue, without buzzer, 24 V AC DC

Main
range of product	Harmony XVR
product or component type	Prewired rotating mirror beacon
sound signalling	Without
device short name	XVR
mounting diameter	120 mm
IP degree of protection	IP23 conforming to IEC 60529
[Us] rated supply voltage	24 V AC/DC
light source	High luminosity LED, blue

Complementary
material	ABS (acrylonitrile butadiene-styrene): body part AS: globe
CAD overall width	120 mm
CAD overall depth	120 mm
net weight	0.5 kg
marking	CE
product mounting	By 3 M5 screws
supply voltage limits	19…30 V DC 21.6…26.4 V AC
[Uimp] rated impulse withstand voltage	0.8 kV
current consumption	125 mA
flashing frequency	2.3 Hz
clamping connection capacity	0.83 mm²
AWG gauge	AWG 18
cable length	400 mm

Environment
standards	EN 61000-6-2 EN 61000-6-4
protective treatment	TC
ambient air temperature for storage	-35…70 °C
ambient air temperature for operation	-10…50 °C
electrical shock protection class	Class II conforming to IEC 61140

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	634.0 g
Package 1 Height	14.0 cm
Package 1 width	14.2 cm
Package 1 Length	19.5 cm
Unit Type of Package 2	PAL
Number of Units in Package 2	160
Package 2 Weight	94.24 kg
Package 2 Height	120.0 cm
Package 2 width	80.0 cm
Package 2 Length	160.0 cm
Unit Type of Package 3	S04
Number of Units in Package 3	8
Package 3 Weight	6.477 kg
Package 3 Height	30.0 cm
Package 3 width	40.0 cm
Package 3 Length	60.0 cm
