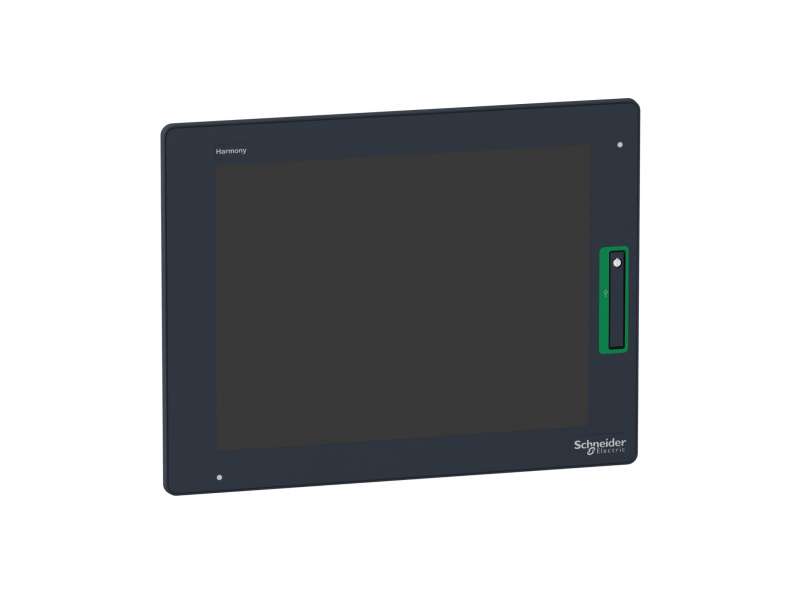

Name: Schneider Electric 12.1'' ekran osetljiv na dodir Smart Display XGA - sa zaštitnim premazom; HMIDT642FC
Brand: Schneider Electric
SKU: HMIDT642FC
Availability: OutOfStock

Schneider Electric 12.1'' ekran osetljiv na dodir Smart Display XGA - sa zaštitnim premazom; HMIDT642FC

12.1 Touch Smart Display XGA - coated display...

Brand: Schneider Electric
Product Code: HMIDT642FC
Availability: Check availability

Price on request

12.1 Touch Smart Display XGA - coated display

Main
range of product	Harmony GTU
product or component type	Flat screen
terminal type	Touchscreen display
integrated connection type	USB 2.0 type A

Complementary
pixel resolution	1024 x 600
touchscreen resolution	1024 x 1024
provided equipment	1 flash card
function available	Brightness sensor
[Us] rated supply voltage	12...24 V DC power supply
supply voltage limits	10.8…28.8 V
power consumption in W	21 W
display size	12.1 inch
display type	Colour TFT LCD
display resolution	1024 x 768 pixels XGA
display colour	16 million colours
backlight lifespan	50000 hours
touch panel	Multi touch analogue resistive
type of installation	Indoor installation
type of cooling	Natural convection
inrush current	30 A
cut-out dimensions	301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
width	315 mm
height	241 mm
depth	67 mm
net weight	3 kg

Environment
IP degree of protection	IP66 front panel:
NEMA degree of protection	NEMA 4X front panel
standards	UL 508
product certifications	CE
ambient air temperature for operation	0…60 °C conforming to EN 61131-2
ambient air temperature for storage	-20…60 °C
pollution degree	2
relative humidity	10…90 % non-condensing
operating altitude	2000 m
vibration resistance	3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
shock resistance	147 m/s² conforming to EN/IEC 61131-2
electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
