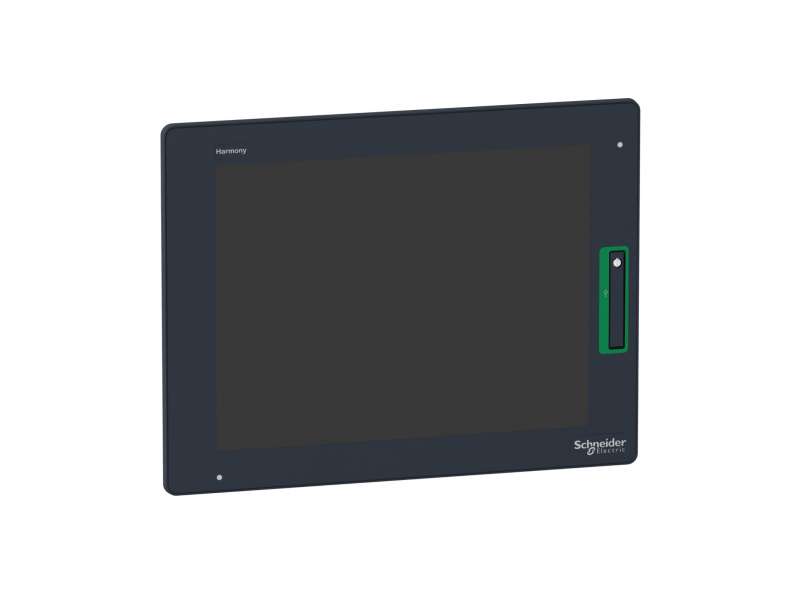

Name: Schneider Electric 12.1'' ekran osetljiv na dodir Smart Display XGA; HMIDT642
Brand: Schneider Electric
SKU: HMIDT642
Price: 245484.00 RSD
Availability: OutOfStock

Schneider Electric 12.1'' ekran osetljiv na dodir Smart Display XGA; HMIDT642

12.1 Touch Smart Display XGA...

Brand: Schneider Electric
Product Code: HMIDT642
Availability: Check availability

VAT-exclusive price: 204.570,00

VAT-inclusive price: 245.484,00

Qnt:

12.1 Touch Smart Display XGA

Main
range of product	Harmony GTU
product or component type	Flat screen
terminal type	Touchscreen display
integrated connection type	USB 2.0 type A USB 2.0 type mini B

Complementary
pixel resolution	1024 x 600
touchscreen resolution	1024 x 1024
function available	Brightness sensor
[Us] rated supply voltage	12...24 V DC power supply
supply voltage limits	10.8…28.8 V
power consumption in W	21 W
display size	12.1 inch
display type	Colour TFT LCD
display resolution	1024 x 768 pixels XGA
display colour	16 million colours
backlight lifespan	50000 hours
touch panel	Multi touch analogue resistive
type of installation	Indoor installation
type of cooling	Natural convection
inrush current	30 A
cut-out dimensions	301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
width	315 mm
height	241 mm
depth	67 mm
net weight	3 kg

Environment
IP degree of protection	IP66 front panel: IP67 front panel:
NEMA degree of protection	NEMA 4X front panel
standards	UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2
product certifications	CE RCM KC CULus
ambient air temperature for operation	0…60 °C conforming to EN 61131-2
ambient air temperature for storage	-20…60 °C
pollution degree	2
relative humidity	10…90 % non-condensing
operating altitude	2000 m
vibration resistance	3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2
shock resistance	147 m/s² conforming to EN/IEC 61131-2
electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	4.43 kg
Package 1 Height	19 cm
Package 1 width	33 cm
Package 1 Length	43.5 cm
Unit Type of Package 2	CAR
Number of Units in Package 2	2
Package 2 Weight	10 kg
Package 2 Height	40 cm
Package 2 width	34 cm
Package 2 Length	44 cm
Unit Type of Package 3	P12
Number of Units in Package 3	10
Package 3 Weight	48.32 kg
Package 3 Height	55.5 cm
Package 3 width	80 cm
Package 3 Length	120 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
