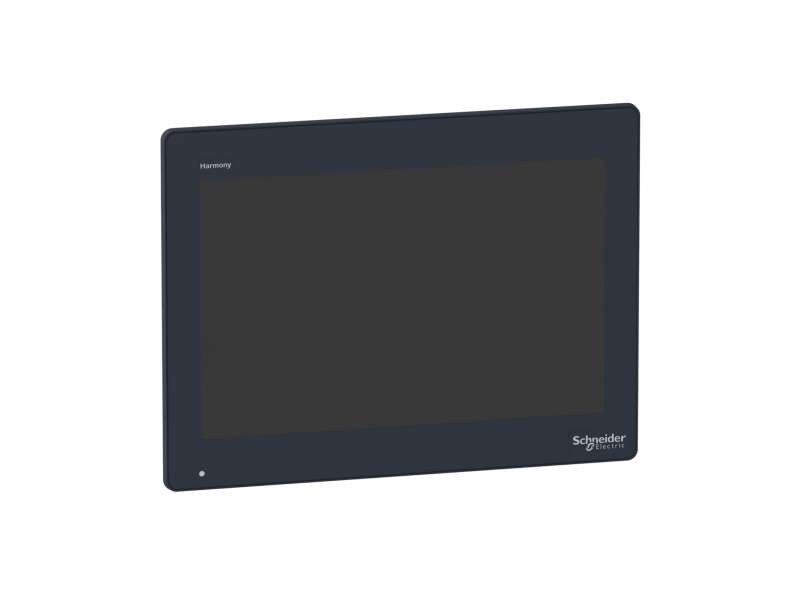

Schneider Electric 12''W ekran osetljiv na dodir Advanced Display WXGA - sa zaštitnim premazom; HMIDT651FC
12W Touch Advanced Display WXGA - coated display...
Price on request
12W Touch Advanced Display WXGA - coated display
| range of product |
Harmony GTU
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| terminal type |
Touchscreen display
|
| pixel resolution |
1280 x 800
|
|
|---|---|---|
| touchscreen resolution |
1024 x 1024
|
|
| provided equipment |
1 flash card
|
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| supply voltage limits |
10.8…28.8 V
|
|
| power consumption in W |
11.5 W
|
|
| display size |
12.1 inch
|
|
| display type |
Colour TFT LCD
|
|
| display resolution |
1280 x 800 pixels WVGA
|
|
| display colour |
262144 colors
|
|
| backlight lifespan |
50000 hours
|
|
| touch panel |
Single touch analogue resistive
|
|
| type of installation |
Indoor installation
|
|
| type of cooling |
Natural convection
|
|
| inrush current |
30 A
|
|
| cut-out dimensions |
295 (+ 1/- 0) x 217 (+ 1/- 0) mm
|
|
| width |
308.5 mm
|
|
| height |
230.5 mm
|
|
| depth |
67 mm
|
|
| net weight |
3 kg
|
| IP degree of protection |
IP66 front panel:
|
|
|---|---|---|
| NEMA degree of protection |
NEMA 4X front panel
|
|
| standards |
UL 508
|
|
| product certifications |
CE
|
|
| ambient air temperature for operation |
0…60 °C conforming to EN 61131-2
|
|
| ambient air temperature for storage |
-20…60 °C
|
|
| pollution degree |
2
|
|
| relative humidity |
10…90 % non-condensing
|
|
| operating altitude |
2000 m
|
|
| vibration resistance |
3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
|
|
| shock resistance |
147 m/s² conforming to EN/IEC 61131-2
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
4.27 kg
|
|
| Package 1 Height |
19 cm
|
|
| Package 1 width |
33 cm
|
|
| Package 1 Length |
43 cm
|
-
Magelis GTU HMIDT651FC
