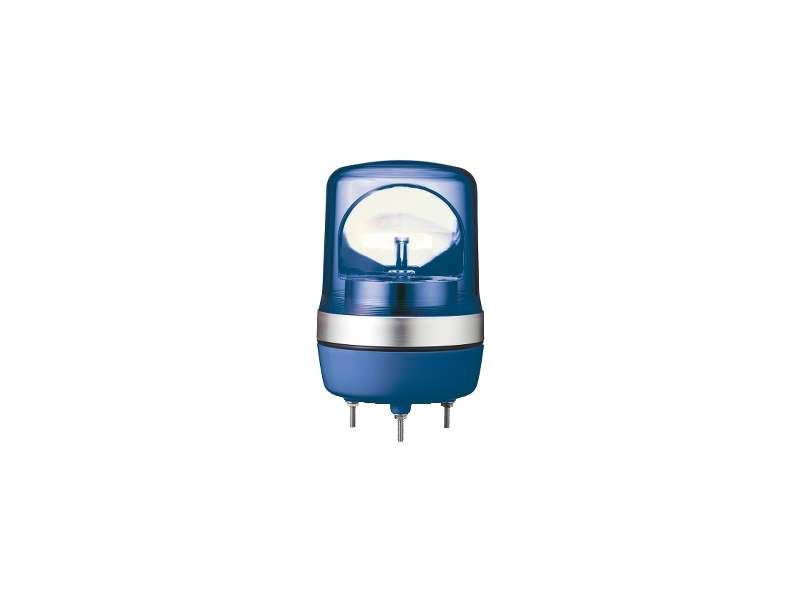

Schneider Electric 106mm rotirajuća svetiljka plava 24VAC-DC;XVR10B06

Prewired rotating mirror beacon, Harmony XVR, 106 mm, blue, without buzzer, 24 V AC DC...

Brand: Schneider Electric
Product Code: XVR10B06
Availability: Check availability

VAT-exclusive price: 21.120,00

VAT-inclusive price: 25.344,00

Qnt:

Description
Specification

Prewired rotating mirror beacon, Harmony XVR, 106 mm, blue, without buzzer, 24 V AC DC

Main
range of product	Harmony XVR
product or component type	Prewired rotating mirror beacon
sound signalling	Without
device short name	XVR
mounting diameter	106 mm
IP degree of protection	IP55 (with accessory) conforming to IEC 60529 IP23 conforming to IEC 60529
[Us] rated supply voltage	24 V AC/DC
light source	High luminosity LED, blue

Complementary
material	ABS (acrylonitrile butadiene-styrene): body part PMMA (polymethyl methacrylate): globe
CAD overall width	106 mm
CAD overall depth	106 mm
net weight	0.5 kg
marking	CE
product mounting	By 3 M4 screws
supply voltage limits	19…30 V DC 21.6…26.4 V AC
[Uimp] rated impulse withstand voltage	0.8 kV
current consumption	125 mA
flashing frequency	2.3 Hz
clamping connection capacity	0.83 mm²
AWG gauge	AWG 18
cable length	400 mm

Environment
standards	EN 61000-6-2 EN 61000-6-4
product certifications	UL
protective treatment	TC
ambient air temperature for storage	-35…70 °C
ambient air temperature for operation	-10…50 °C
electrical shock protection class	Class II conforming to IEC 61140

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	624.0 g
Package 1 Height	13.5 cm
Package 1 width	14.0 cm
Package 1 Length	19.5 cm
Unit Type of Package 2	PAL
Number of Units in Package 2	32
Package 2 Weight	19.968 kg
Package 2 Height	60.0 cm
Package 2 width	80.0 cm
Package 2 Length	32.0 cm
Unit Type of Package 3	S04
Number of Units in Package 3	8
Package 3 Weight	6.368 kg
Package 3 Height	30.0 cm
Package 3 width	40.0 cm
Package 3 Length	60.0 cm
