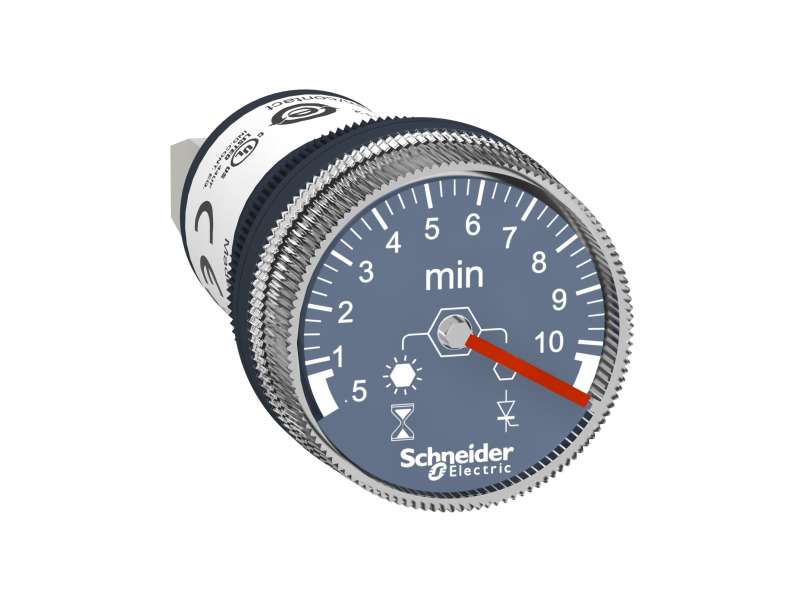

Schneider Electric 100…240 VAC/DC tajmer za montažu na ploču jedna funkc. 0.5 min..10 min kašnjenje;XB5DTGM4
Panel mounted timer monofunction, plastic, Ø22, time delay 0.5...10 min, 100…240 V AC/DC...
VAT-exclusive price: 8.154,00 |
VAT-inclusive price: 9.784,80 |
Panel mounted timer monofunction, plastic, Ø22, time delay 0.5...10 min, 100…240 V AC/DC
| range of product |
Harmony XB5
|
|
|---|---|---|
| sale per indivisible quantity |
1
|
|
| product or component type |
Timer
|
| bezel material |
Plastic
|
|
|---|---|---|
| fixing collar material |
Plastic
|
|
| mounting diameter |
22 mm
|
|
| Panel Thickness |
6 mm
|
|
| shape of signaling unit head |
Round
|
|
| time delay range |
0.5...10 min
|
|
| time delay type |
A
|
|
| repeat accuracy |
+/- 0.5 %
|
|
| setting accuracy of time delay |
+/- 10 % of full scale at 25 °C conforming to EN/IEC 61812-1
|
|
| temperature drift |
+/- 0.05 %/°C
|
|
| voltage drift |
+/- 0.2 %/V
|
|
| protection type |
Overvoltage protection
|
|
| output type |
Open collector PNP
|
|
| temporary permissible current |
10 A for 0.01 s
|
|
| minimum switching current |
10 mA
|
|
| Voltage drop in closed state |
5 V
|
|
| network type |
AC
|
|
| residual current in open state |
5 mA
|
|
| maximum power consumption in W |
1 W
|
|
| maximum power consumption in VA |
1.5 VA
|
|
| reset time |
30 ms after time delay on de-energisation
60 ms during time delay on de-energisation |
|
| local signalling |
LED green, steady for timing in progress
LED, stop or suppress for no timing in progress and output relay energised |
|
| [Us] rated supply voltage |
110...230 V AC/DC
|
|
| supply voltage limits |
93.5…253 V AC/DC
|
|
| output short-circuit protection |
With
|
|
| connections - terminals |
Screw terminals 1 x 4 mm² conforming to EN/IEC 60947-1
Screw terminals 1 x 2.5 mm² conforming to EN/IEC 60947-1 |
|
| IP degree of protection |
IP65 front: conforming to IEC 60529
IP20 back: conforming to IEC 60529 |
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-20…80 °C
|
|
| tightening torque |
0.5 N.m
|
|
| dielectric strength |
1500 V conforming to EN/IEC 61812-1
|
|
| [Ui] rated insulation voltage |
250 V conforming to EN 60947-1
250 V conforming to IEC 60664-1 |
|
| [Uimp] rated impulse withstand voltage |
4 kV EN 60947-1
4 kV IEC 60664-1 |
|
| surge withstand |
2 kV, level 2 conforming to IEC 61000-4-5
|
|
| overvoltage category |
Class 3 conforming to IEC 60536
Class 3 conforming to IEC 60664-1 |
|
| pollution degree |
3
|
|
| vibration resistance |
0.15 mm (f= 10…60 Hz) conforming to IEC 60068-2-6
2 gn (f= 60…150 Hz) conforming to IEC 60068-2-6 |
|
| shock resistance |
+/- 15 gn for 11 ms (6 shocks on each axis) conforming to IEC 60068-2-27
|
|
| resistance to fast transients |
2 kV class level 3 conforming to IEC 61000-4-4
|
|
| electromagnetic compatibility |
Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2
Electromagnetic emission class B conforming to IEC 55011 |
|
| resistance to electromagnetic fields |
10 V/m 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3
3 V/m 1.4...2 GHz level 3 conforming to IEC 61000-4-3 1 V/m 2...2.7 GHz level 3 conforming to IEC 61000-4-3 |
|
-
Harmony XB5 XB5DTGM4
