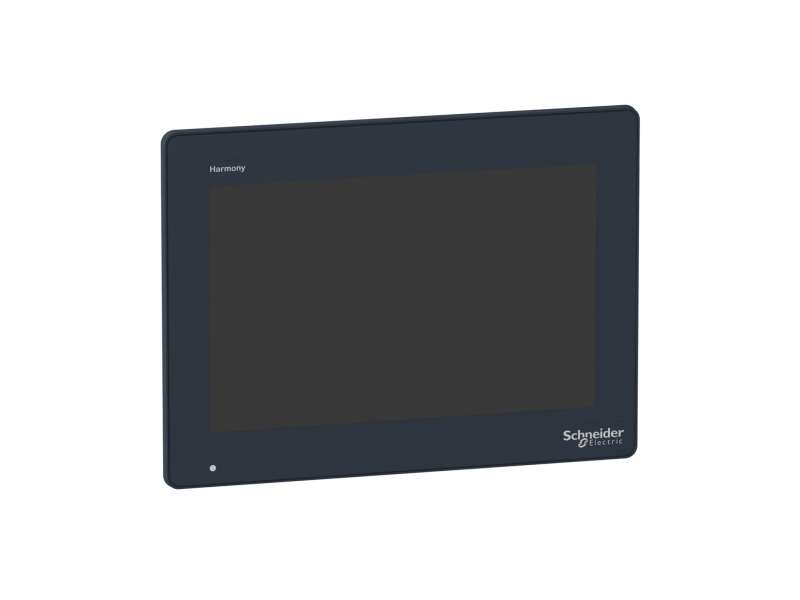

Schneider Electric 10''W ekran osetljiv na dodir Advanced Display WXGA; HMIDT551
10W Touch Advanced Display WXGA...
VAT-exclusive price: 117.850,00 |
VAT-inclusive price: 141.420,00 |
10W Touch Advanced Display WXGA
| range of product |
Harmony GTU
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| terminal type |
Touchscreen display
|
| pixel resolution |
1280 x 800
|
|
|---|---|---|
| touchscreen resolution |
1024 x 1024
|
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| supply voltage limits |
10.8…28.8 V
|
|
| power consumption in W |
6.5 W
|
|
| display size |
10.1 inch
|
|
| display type |
Colour TFT LCD
|
|
| display resolution |
1280 x 800 pixels WVGA
|
|
| display colour |
262144 colors
|
|
| backlight lifespan |
50000 hours
|
|
| touch panel |
Single touch analogue resistive
|
|
| type of installation |
Indoor installation
|
|
| type of cooling |
Natural convection
|
|
| inrush current |
30 A
|
|
| cut-out dimensions |
255 (+ 1/- 0) x 185 (+ 1/- 0) mm
|
|
| width |
268.5 mm
|
|
| height |
198.5 mm
|
|
| depth |
67 mm
|
|
| net weight |
2.5 kg
|
| IP degree of protection |
IP66 front panel:
IP67 front panel: |
|
|---|---|---|
| NEMA degree of protection |
NEMA 4X front panel
|
|
| standards |
UL 508
ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2 |
|
| product certifications |
RCM
CULus KC CE |
|
| ambient air temperature for operation |
0…60 °C conforming to EN 61131-2
|
|
| ambient air temperature for storage |
-20…60 °C
|
|
| pollution degree |
2
|
|
| relative humidity |
10…90 % non-condensing
|
|
| operating altitude |
2000 m
|
|
| vibration resistance |
3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2 |
|
| shock resistance |
147 m/s² conforming to EN/IEC 61131-2
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
9.15 kg
|
|
| Package 1 Height |
19 cm
|
|
| Package 1 width |
37.5 cm
|
|
| Package 1 Length |
33.5 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
2
|
|
| Package 2 Weight |
9.092 kg
|
|
| Package 2 Height |
35.5 cm
|
|
| Package 2 width |
42 cm
|
|
| Package 2 Length |
45.5 cm
|
|
| Unit Type of Package 3 |
P12
|
|
| Number of Units in Package 3 |
20
|
|
| Package 3 Weight |
80.92 kg
|
|
| Package 3 Height |
100 cm
|
|
| Package 3 width |
80 cm
|
|
| Package 3 Length |
120 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Magelis GTU HMIDT551
